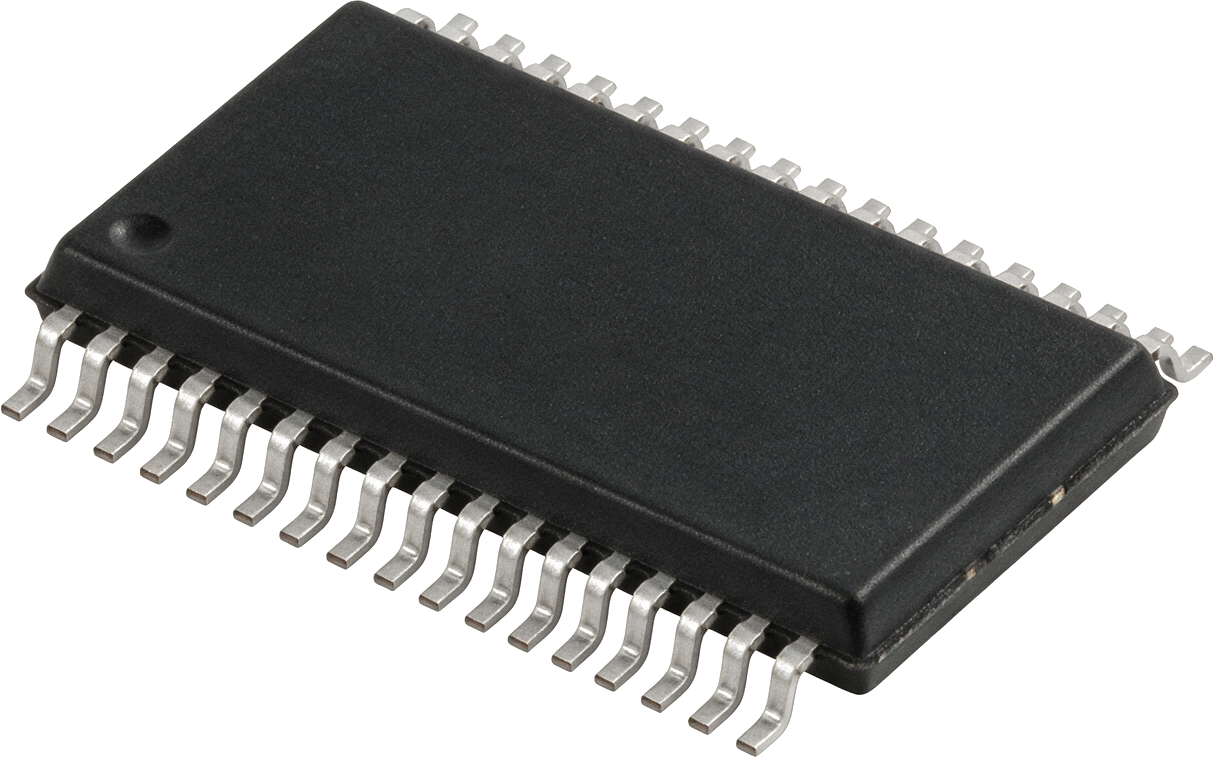

BQ20Z65DBTR-R1 product

BQ20Z65DBTR-R1

PMIC - Battery Management

Battery ManagementGas GaugeProtection IC

The BQ20Z65DBTR-R1 is a highly integrated SBS 1.1-compliant gas gauge and protection IC for 2-4 cell Li-Ion/Li-Polymer battery packs.

Best for

  • Notebook PCs
  • Portable medical devices

Avoid if

  • Applications requiring non-SMBus communication

Check before use

  • Firmware configuration and cell balancing requirements

Key specifications

Cells
2-4 Series
Interface
SMBus
Package
44-TSSOP

Compliance & Environment

RoHS
RoHS & Green
REACH
-
MSL
Level-2-260C-1 YEAR
ECCN
-
HTSUS
-

Application

Notebook PCsMedical Equipment

Datasheet

bq20z65-r1.pdf

800 KB

Datasheet AI

CAD Models

EDA symbol, PCB footprint, and 3D model for this component. Supported tools include Altium, KiCad, Eagle, and more.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a single-chip battery management solution that combines gas gauging (using Impedance Track technology) with comprehensive safety protection for multi-cell Li-Ion/Li-Polymer battery packs.
