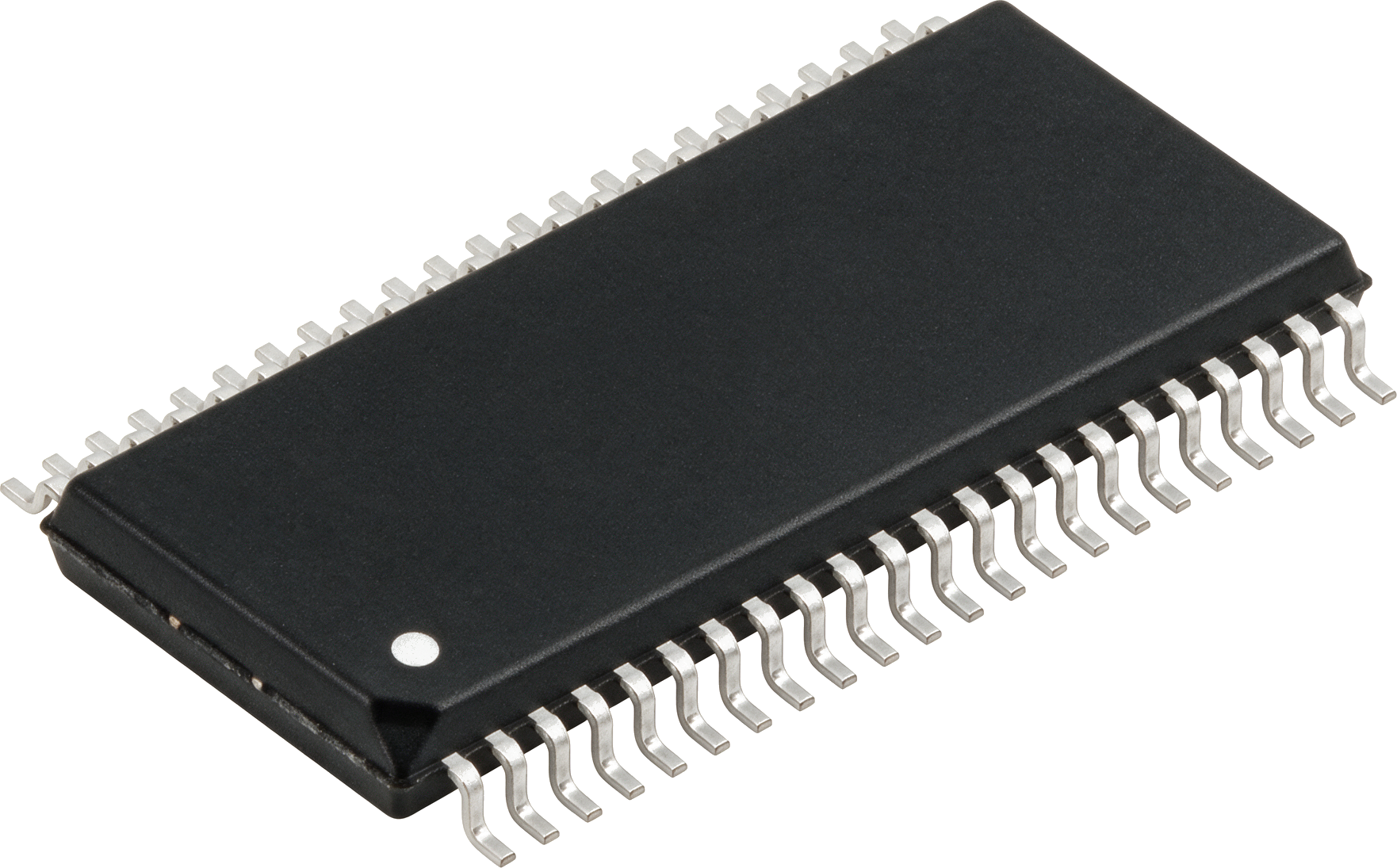

74ACT16373DLR product

74ACT16373DLR

Latches

Latch16-bit3-state

The 74ACT16373DLR is a 16-bit D-type transparent latch with 3-state outputs, ideal for high-speed bus-organized systems.

Best for

  • Bus-organized systems
  • High-speed data latching

Avoid if

  • Low-power battery applications requiring minimal current draw

Check before use

  • Timing requirements
  • Output drive current limits

Key specifications

Logic Type
D-Type Transparent Latch
Bits
16
Output
3-State

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
Level-1-260C-UNLIM
ECCN
-
HTSUS
-

Application

IndustrialGeneral
