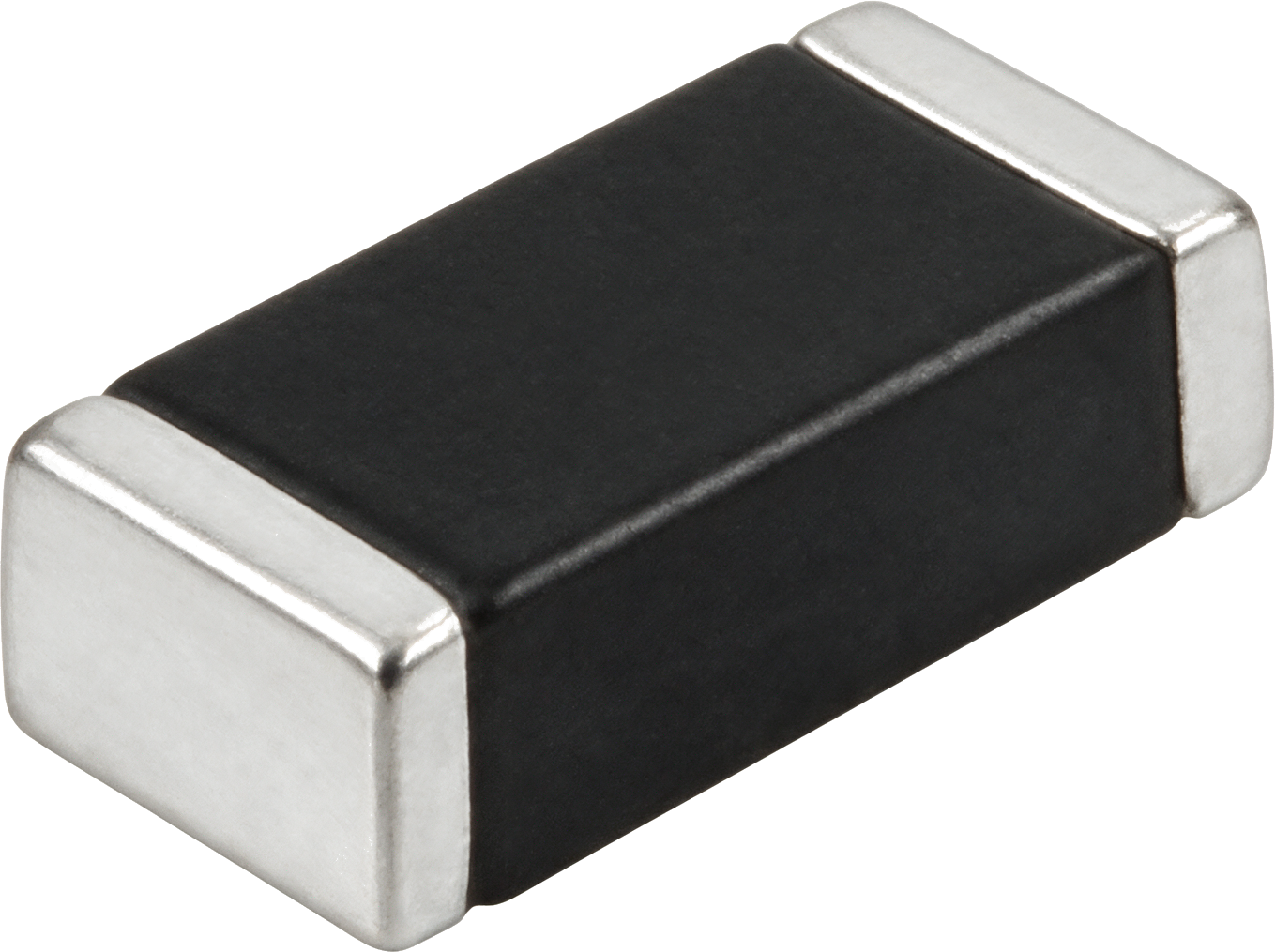

ALT3232M-151-T001 product

ALT3232M-151-T001

Pulse Transformers

Pulse TransformerLANTDKSurface Mount

The TDK ALT3232M-151-T001 is a compact, wound chip pulse transformer optimized for 10/100/1000BASE-T LAN interfaces.

Best for

  • LAN interface circuits
  • Network equipment
  • Communication hardware

Avoid if

  • Applications requiring high-power isolation beyond standard LAN specs

Check before use

  • Reflow soldering profile
  • PCB layout for non-magnetic shield type

Key specifications

TD

Manufacturer

TDK Electronics AG
Inductance
150 µH
Turn Ratio
1CT:1CT
Max Insertion Loss
2.5 dB

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
Compliant
MSL
-
ECCN
-
HTSUS
-

Application

ConnectivityIndustrial
