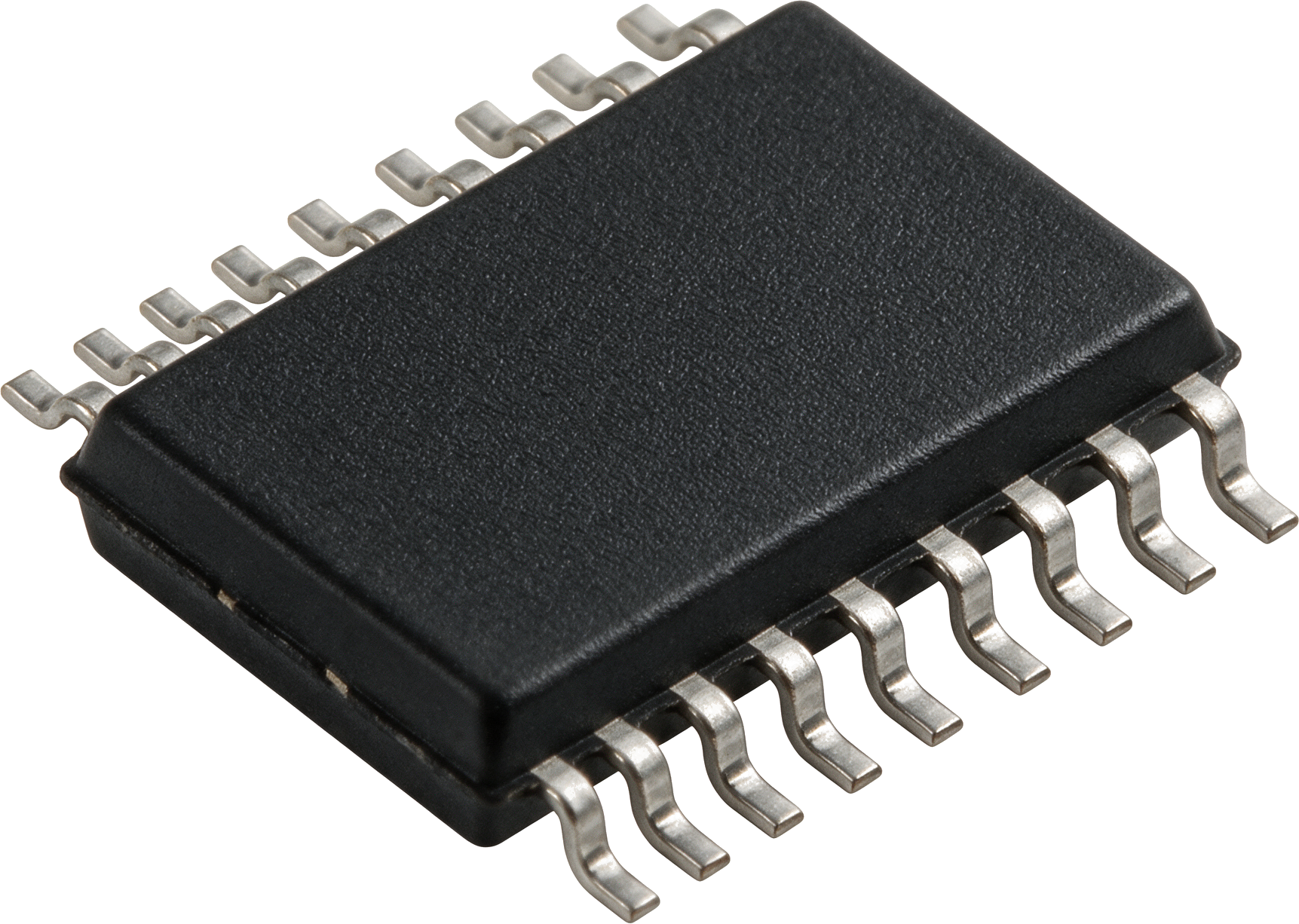

APV1111GV1Y product

APV1111GV1Y

Photovoltaic Output

PhotovoltaicMOSFET DriverSSOP

The APV1111GV1Y is a high-power photovoltaic MOSFET driver in an SSOP package, optimized for high-speed switching applications.

Best for

  • Driving MOSFETs in industrial machinery
  • FA power supplies
  • Test and measurement equipment

Avoid if

  • Applications requiring extremely high output current beyond the driver's capability

Check before use

  • Ensure the LED forward current is maintained between 5 mA and 20 mA for optimal performance.

Key specifications

Drop-out Voltage
8.5 V
Short Circuit Current
45 µA
Isolation Voltage
1500 Vrms

Compliance & Environment

RoHS
Compliant
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

Industrial MachineryPower Supplies
