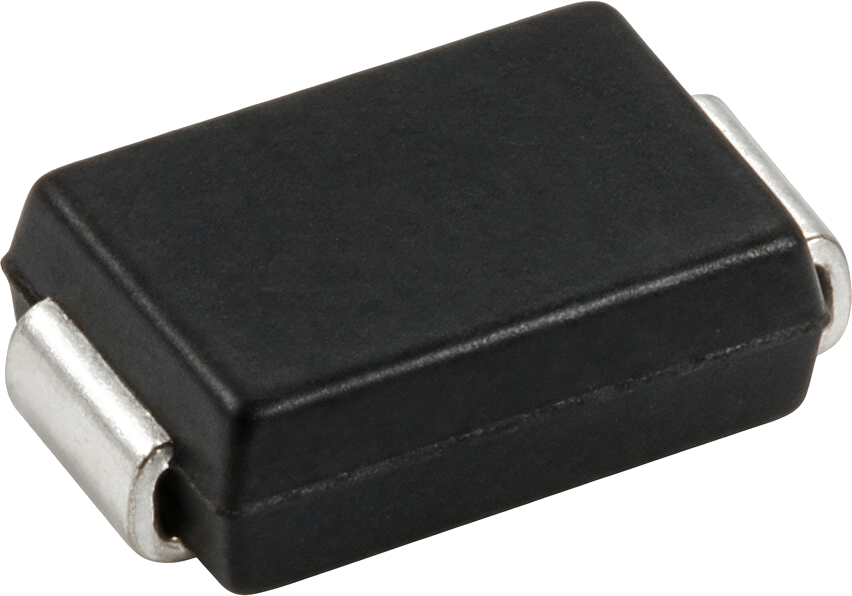

ASMD2018-200 product

ASMD2018-200

Circuit Protection

PTCResettable FuseSMD

The ASMD2018-200 is a 12V, 2A surface mount resettable PTC fuse in a 2018 package, ideal for overcurrent protection in compact electronics.

Best for

  • USB port protection
  • Industrial control
  • Security systems

Avoid if

  • Operating voltage exceeds 12V
  • Continuous current exceeds 2A at 25°C

Check before use

  • Thermal derating curve
  • Maximum fault current limits

Key specifications

Hold Current
2A
Trip Current
4A
Max Voltage
12V
Package
2018

Compliance & Environment

RoHS
Compliant
REACH
-
MSL
Level 1
ECCN
-
HTSUS
-

Application

Industrial ControlUSB Protection

Datasheet

1fbb01607980072d8632d2a963fc7d2a.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for ASMD2018-200: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a surface mount resettable PTC (Positive Temperature Coefficient) fuse designed for overcurrent protection.
