BD82006FVJ-MGE2 AI Analysis:
Datasheet, Specs, Alternatives & ECAD

AI summary

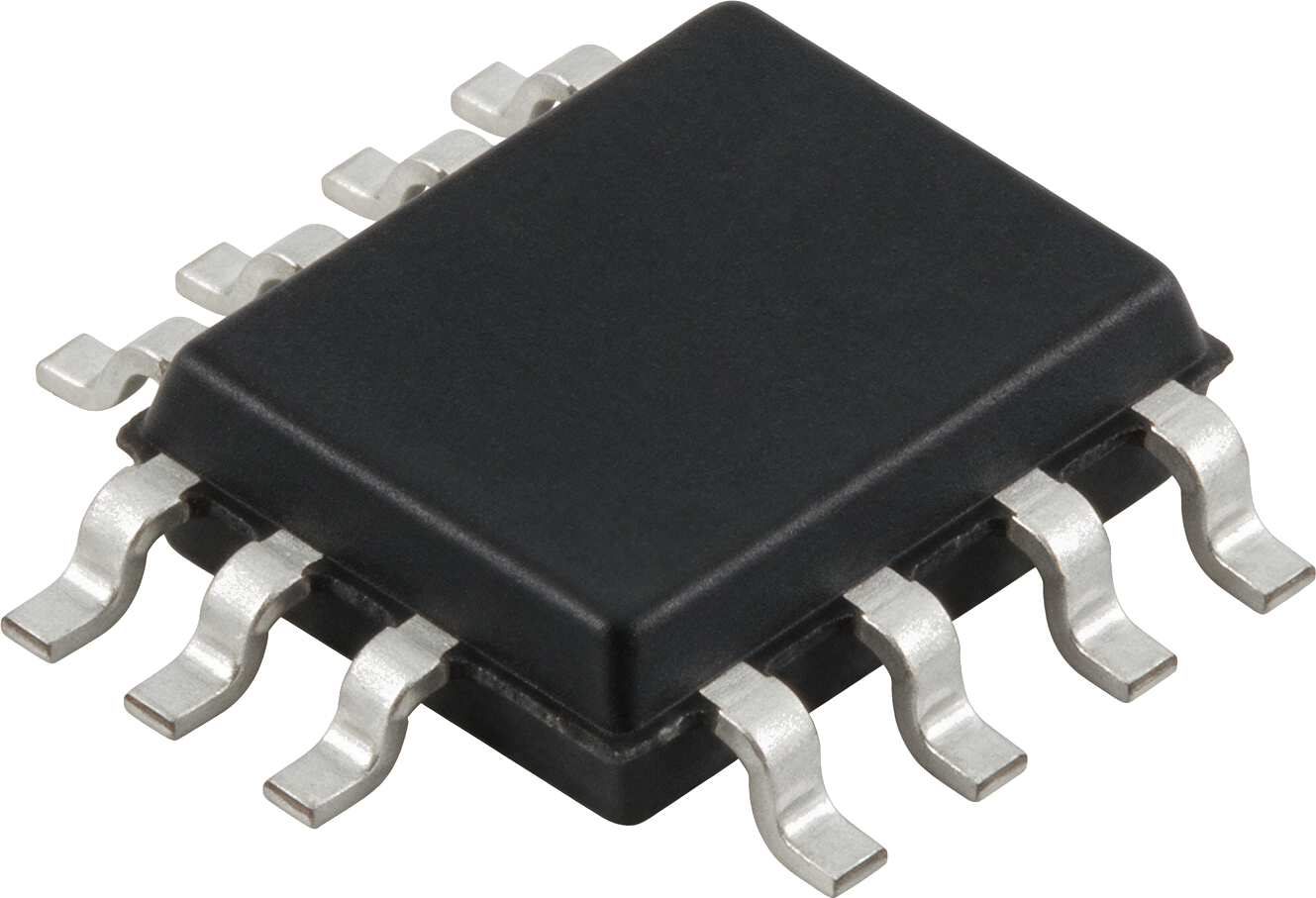

BD82006FVJ-MGE2 product

BD82006FVJ-MGE2

Power Distribution Switches

High-Side SwitchUSB PowerAEC-Q100

The BD82006FVJ-MGE2 is a 2.4A high-side power switch IC optimized for USB applications, featuring AEC-Q100 qualification and integrated protection features.

Best for

  • USB power distribution
  • Automotive accessories

Avoid if

  • Applications requiring >2.4A continuous current

Check before use

  • Thermal dissipation requirements

Key specifications

Current Limit
2.4 A
ON-Resistance
70 mΩ
Input Voltage
2.7 V - 5.5 V

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
-
ECCN
EAR99
HTSUS
8541100080.0

Application

AutomotiveUSB Power

Datasheet

186470.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for BD82006FVJ-MGE2: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a 1-channel N-Channel MOSFET high-side power switch IC designed for USB applications, providing over-current protection, thermal shutdown, and under-voltage lockout.
