The BTS7205U is primarily deployed in 5G massive MIMO (mMIMO) active antenna systems and high-capacity wireless infrastructure base stations. Its dual-channel architecture, fast switching times between RX and TX modes, low noise figure of 1.3 dB, and robust high-power handling up to 37 dBm make it ideal for advanced cellular base station receiver chains requiring integrated filtering, signal conditioning, and antenna-to-termination switching capabilities.

Operating within a frequency range of 3.3 GHz to 4.2 GHz, the BTS7205U operates from a nominal supply voltage of 3.3 V with a typical supply current of 51 mA in high and low gain RX modes and 5.9 mA in TX mode. It delivers a high gain RX power gain of 36 dB (30 dB in low gain mode), an attenuation step of 6 dB, a typical noise figure of 1.3 dB, and an output third-order intercept point (IP3o) of 23 dBm. It handles maximum average input power up to 37 dBm in TX mode and dissipates 170 mW per channel.

Designers must carefully review the PCB layout to ensure that decoupling capacitors (10 nF and 1 uF) and high-Q inductors (120 nH) are placed as close as possible to the IC, remaining within 10 mm to maintain switching performance and low ohmic connection at the antenna port. Furthermore, the external 50-ohm load resistors (R1 and R2) must be rated to withstand 34 dBm average power over lifetime. Thermal dissipation through the exposed die paddle must also be properly simulated and managed.

Common pitfalls include improper placement of decoupling and biasing network components leading to degraded switching speeds or increased noise figures, and failure to select load resistors capable of handling 34 dBm average RF power. Neglecting thermal design around the exposed die paddle can lead to junction temperatures exceeding maximum ratings. Additionally, mismatch in 50-ohm single-ended RF lines can degrade return loss and channel isolation.

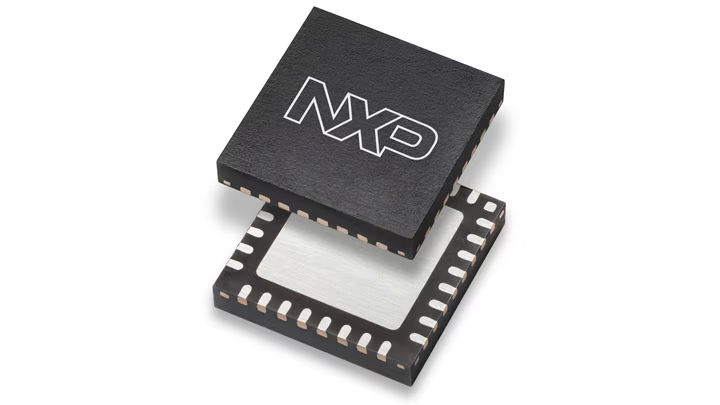

The BTS7205U is an active production component supplied by NXP Semiconductors with established packaging in HVQFN32. Sourcing risks are generally low for high-volume infrastructure applications, but supply chain lead times and authorized distributor availability should be verified for large-scale deployments.

The BTS7205U complies with standard commercial electronic component guidelines, featuring RoHS and REACH compliance where applicable. It is classified under ECCN EAR99 with HTSUS code 8542.39.0000, and includes electrostatic discharge (ESD) protection on all pins meeting Human Body Model (HBM) up to 2 kV and Charged Device Model (CDM) up to 500 V.

Use the BTS7205U datasheet for the official pinout diagram and pin names. In PartGenie, ask Datasheet AI about BTS7205U pinout to locate pins, power rails, and interface signals before layout.
