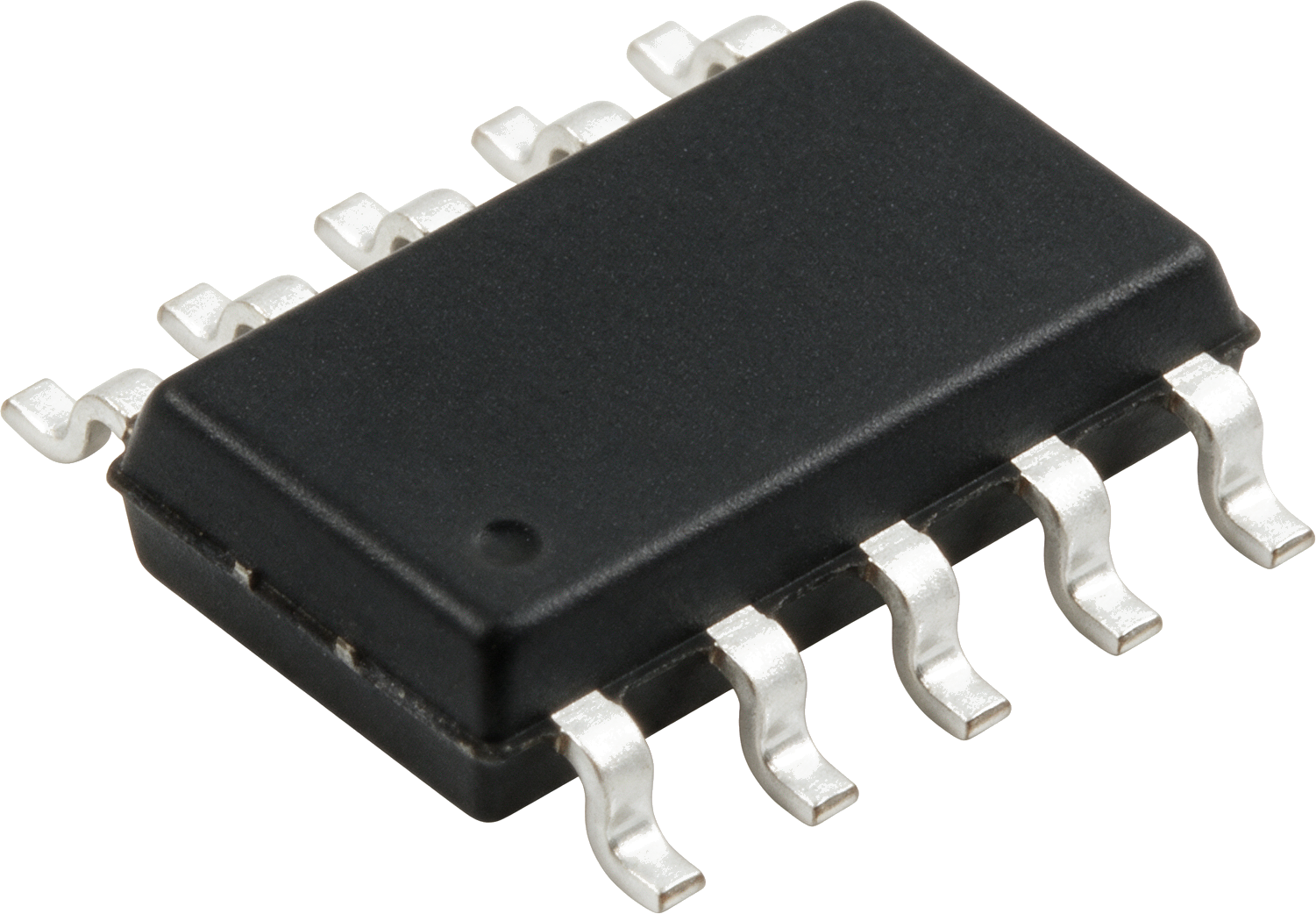

CN3387 product

The CN3387 is a PFM boost-type charger controller for 4-12 cell NiMH batteries, offering high efficiency and integrated protection features.

Best for

NiMH battery charging applications
Portable power tools
Battery-powered toys

Avoid if

Applications requiring Li-ion specific charging profiles
Designs where space is extremely limited for external components

Check before use

Ensure the external MOSFETs and inductors are sized correctly for the target charging current.

Key specifications

Input Voltage: 2.7V - 6.5V
Switching Frequency: 1MHz
Package: SSOP-10

Compliance & Environment

RoHS: RoHS Compliant
REACH: -
MSL: -
ECCN: -
HTSUS: -

Application

Battery ChargersPower Tools

Datasheet

9e861979bbd0909b7b78440287a4afae_2206151815_ShangHai-Consonance-Elec-CN3387_C2961778.pdf

800 KB

CAD Models

Download ECAD models for CN3387: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol

Schematic symbol for your EDA tool

PCB Footprint

Land pattern for PCB layout

3D Model

STEP file for mechanical design

KiCad Library

Verified KiCad 8 symbol, footprint, and 3D model

Generate library

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

The CN3387 is a PFM boost-type battery charger control IC specifically designed for managing the charging of 4 to 12-cell NiMH battery packs.
