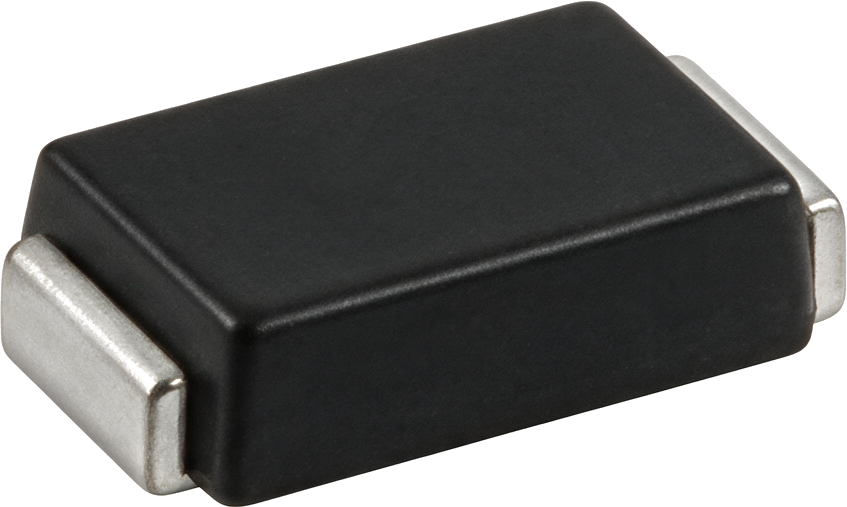

CSS2H-5930R-L500FE product

CSS2H-5930R-L500FE

Chip Resistor - Surface Mount

Current SenseAEC-Q200High Power

The CSS2H-5930R-L500FE is a high-performance 0.5 mΩ, 8 W current sense resistor from Bourns, ideal for automotive and industrial power management.

Best for

  • Battery management systems
  • Power modules
  • Automotive current sensing

Avoid if

  • Applications requiring extremely low inductance beyond the specified 5 nH

Check before use

  • Thermal dissipation on the PCB

Key specifications

Resistance
0.5 mΩ
Power Rating
8 W
Tolerance
±1%
TCR
±100 PPM/°C

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
Level 1
ECCN
-
HTSUS
-

Application

AutomotivePower Management

Datasheet

Bourns-company-36.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for CSS2H-5930R-L500FE: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a surface-mount current sense resistor featuring EB welded metal strip technology, designed for high-current applications.
