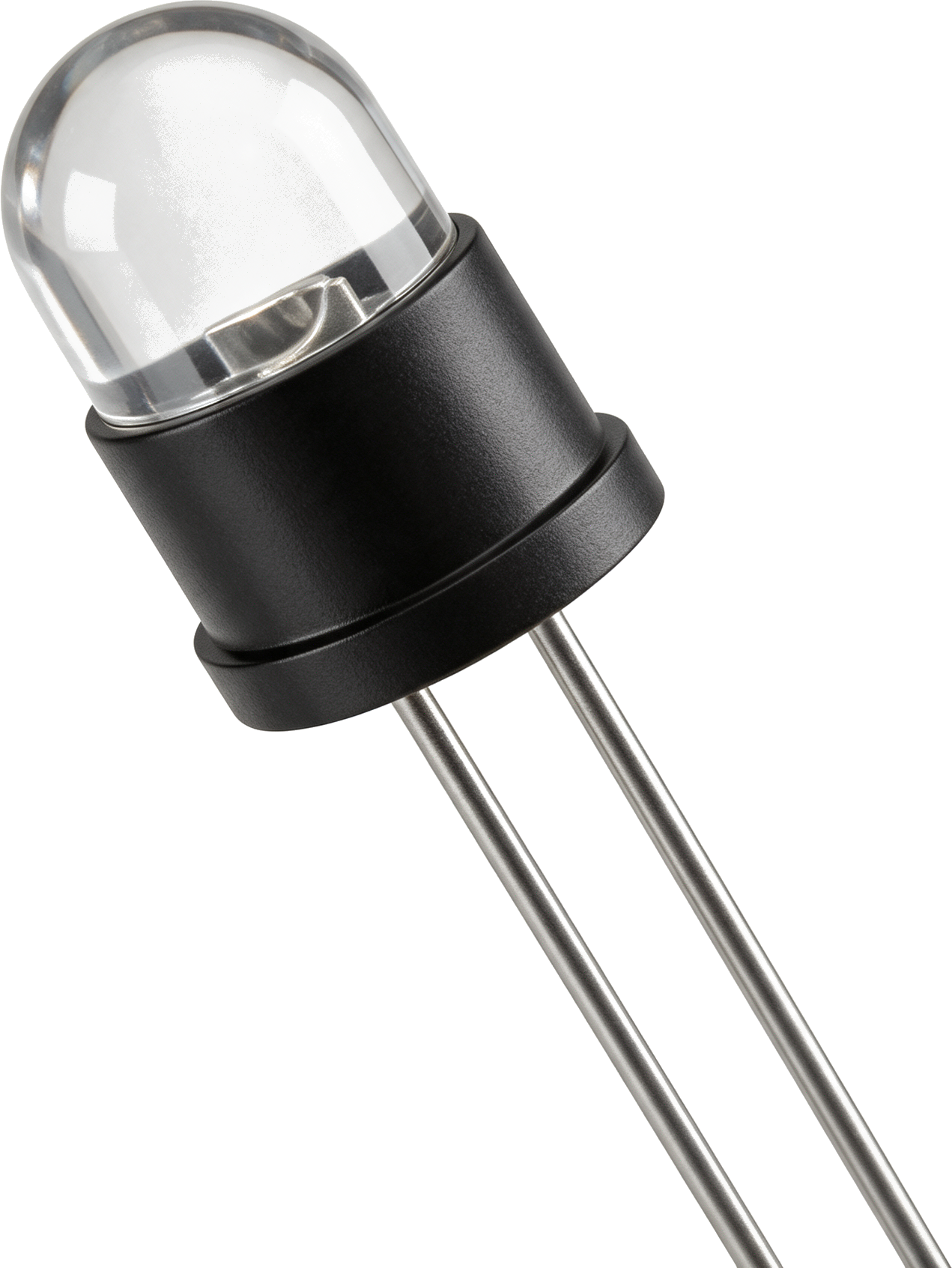

EL 504YGD product

EL 504YGD

LED Lighting - Color

LEDThrough-hole5mmYellow Green

The EL504YGD is a standard 5mm through-hole Yellow Green LED suitable for general status indication and industrial control panels.

Best for

  • Status indication
  • Industrial control panels

Avoid if

  • High-vibration environments without proper strain relief

Check before use

  • Lead forming distance (min 3mm from base)

Key specifications

Color
Yellow Green
Forward Voltage
2.00 V (Typ)
Luminous Intensity
50 - 200 mcd

Compliance & Environment

RoHS
Compliant
REACH
Compliant
MSL
-
ECCN
-
HTSUS
-

Application

IndustrialGeneral
