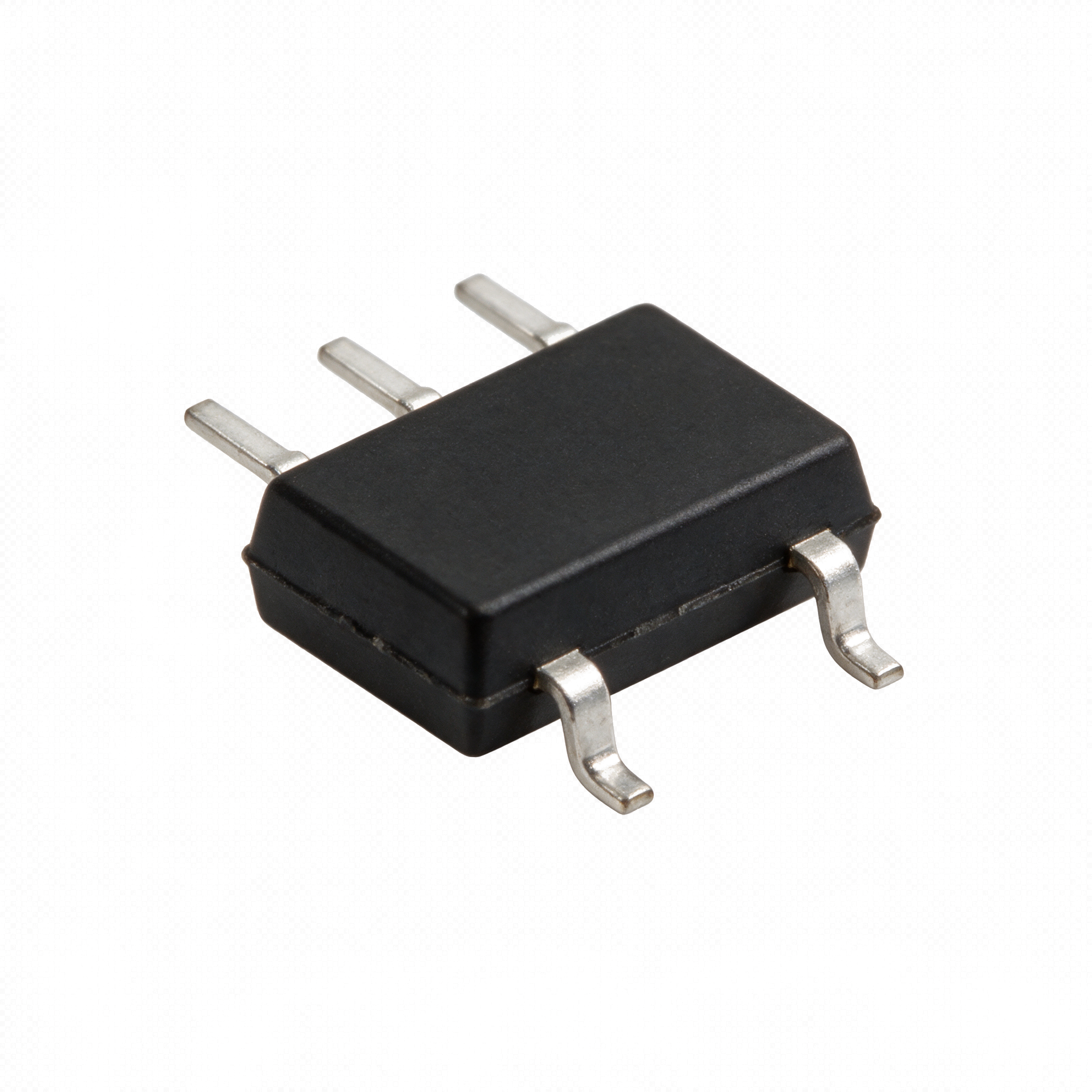

GAQV278AEH-SIC product

GAQV278AEH-SIC

Solid State Relays

SiCSolid State Relay1800V

The GAQV278AEH is a high-voltage 1800V SiC Photo MOS Relay designed for robust, bounce-free switching in industrial and telecom applications.

Best for

  • High-voltage switching
  • Telecom
  • Energy management

Avoid if

  • Load current exceeds 30mA
  • High-speed switching requirements beyond relay limits

Check before use

  • LED forward current (5-30mA)
  • Inductive load protection

Key specifications

Load Voltage
1800V
Load Current
30mA
Isolation
5000Vrms

Compliance & Environment

RoHS
Compliant
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

IndustrialTelecom

Datasheet

2d286fb811533bda633926a5cb11df05_2407191001_SUPSiC-GAQV278AEH-SIC_C7435173.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for GAQV278AEH-SIC: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a 1 Form A (SPST-NO) SiC-based solid-state relay capable of switching up to 1800V and 30mA.
