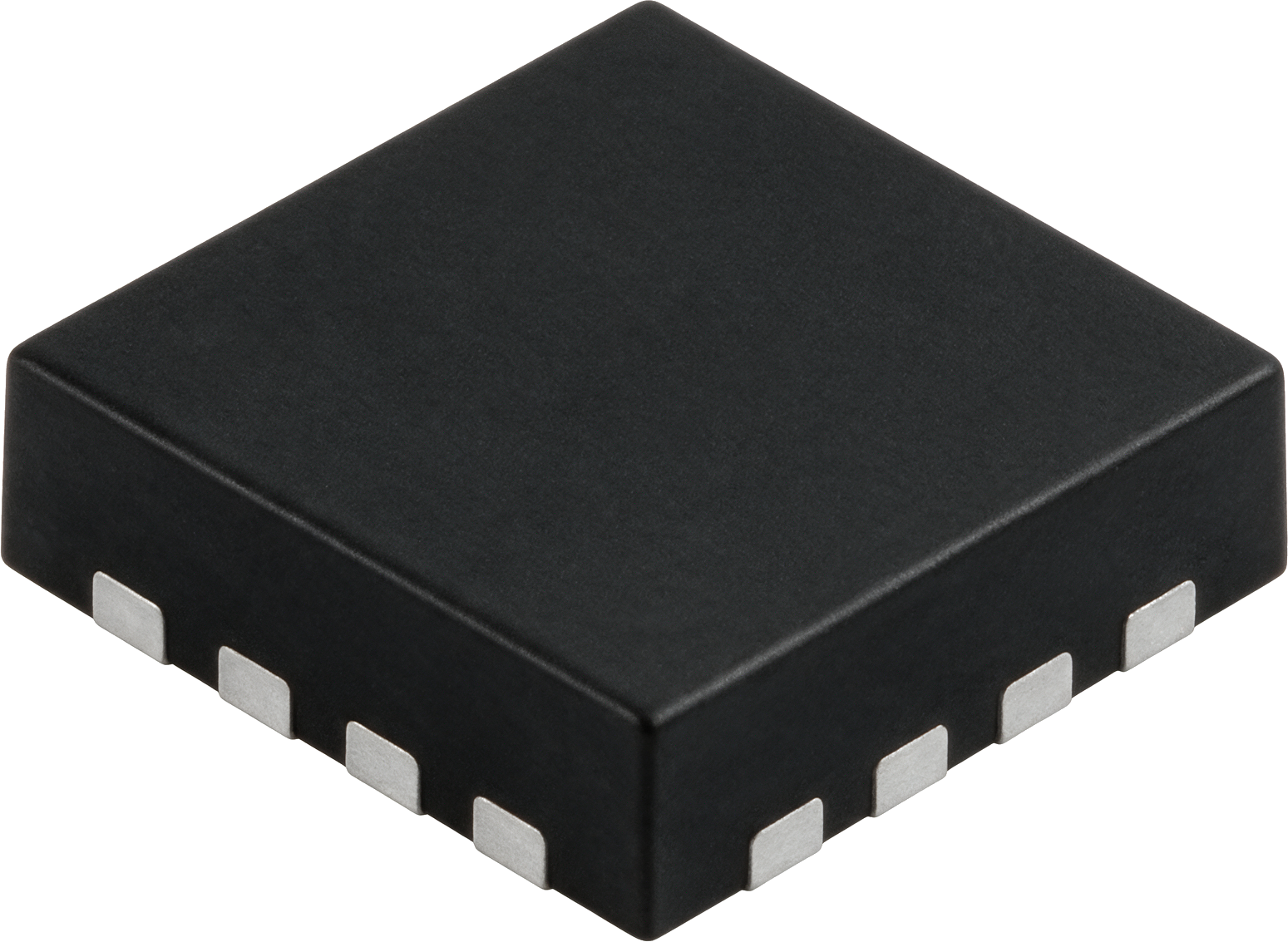

GBI5120NMCR product

GBI5120NMCR

PMIC - Voltage Regulators - Linear

LDOLow NoiseHigh PSRR

The GBI5120 is a 2A, low-noise, high-PSRR CMOS LDO regulator designed for noise-sensitive applications like precision amplifiers and clocking circuits.

Best for

  • Precision analog circuits
  • Noise-sensitive instrumentation

Avoid if

  • High-voltage applications exceeding 6.5V

Check before use

  • Output capacitor ESR requirements
  • Feedback resistor values

Key specifications

Input Voltage
2.3V to 6.5V
Max Output Current
2A
Output Noise
5µVRMS
PSRR
60dB at 100kHz

Compliance & Environment

RoHS
Yes
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

IndustrialPower

Datasheet

2cabf2b7b225e9a437dbeebd33e988bd_2407111421_GOSEMICON-GBI5120NMCR_C28324639.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for GBI5120NMCR: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

The GBI5120 is a high-performance CMOS LDO regulator capable of delivering up to 2A of output current with ultralow noise and high power supply rejection.
