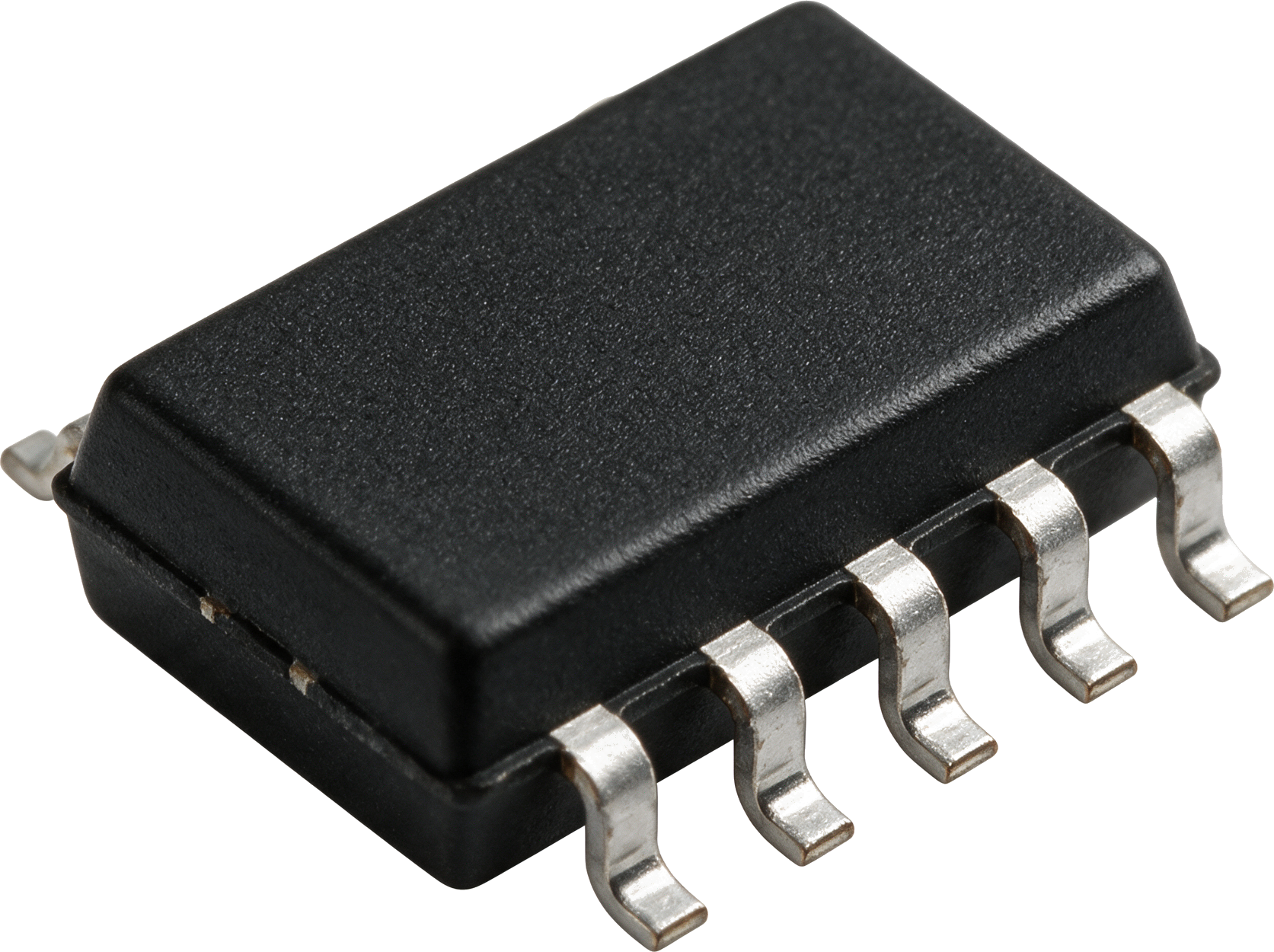

HT4053ARZ

Analog Switches

Analog MultiplexerCMOSSPDT

The HT4053A is a triple 2-channel analog multiplexer/demultiplexer designed for high-performance CMOS applications.

Best for

  • Analog signal routing
  • Data acquisition systems

Avoid if

  • Applications requiring extremely low ON resistance below 200 ohms

Check before use

  • Supply voltage levels and logic control compatibility

Key specifications

Supply Voltage
3V - 18V
Configuration
Triple 2-Channel
Temp Range
-55°C to +125°C

Compliance & Environment

RoHS
-
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

General

Datasheet

4e04ed972d2e394bafb7ebf2c622026a_2301051809_HTCSEMI-HT4053ARZ_C2834441.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for HT4053ARZ: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a triple 2-channel analog multiplexer/demultiplexer with low ON impedance and low leakage current, suitable for switching analog signals up to 20V peak-to-peak.
