LKDA9221QF

Data Acquisition - Digital to Analog Converters (DAC)

DAC16-bitJESD204BHigh-Speed

The LKDA9221QF is a high-performance 4-channel 16-bit DAC designed for high-speed wireless and communication applications.

Best for

  • Wireless base stations
  • MIMO systems
  • Software Defined Radio

Avoid if

  • Low-power or low-speed applications

Check before use

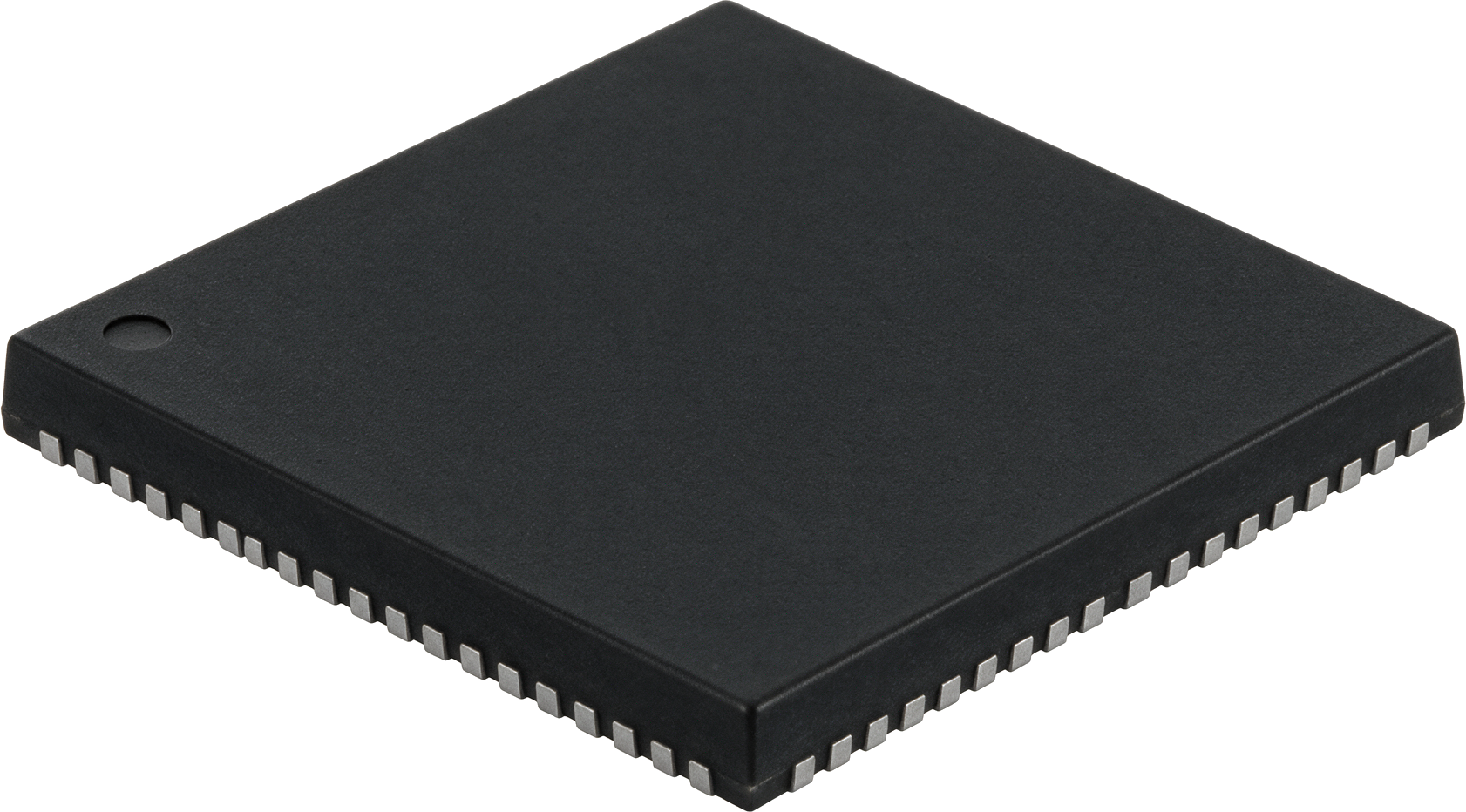

  • Thermal management of the QFN88 package

Key specifications

Resolution
16-bit
Sampling Rate
2.4 GSPS
Interface
JESD204B

Compliance & Environment

RoHS
-
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

Wireless InfrastructureMIMO Systems

Datasheet

39c595ff0aa0fa617e2fac0cf47d1707_2402291510_LKWIC-LKDA9221QF_C20626230.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for LKDA9221QF: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a 4-channel, 16-bit high-dynamic-range Digital-to-Analog Converter (DAC) with a maximum sampling rate of 2.4 GSPS.
