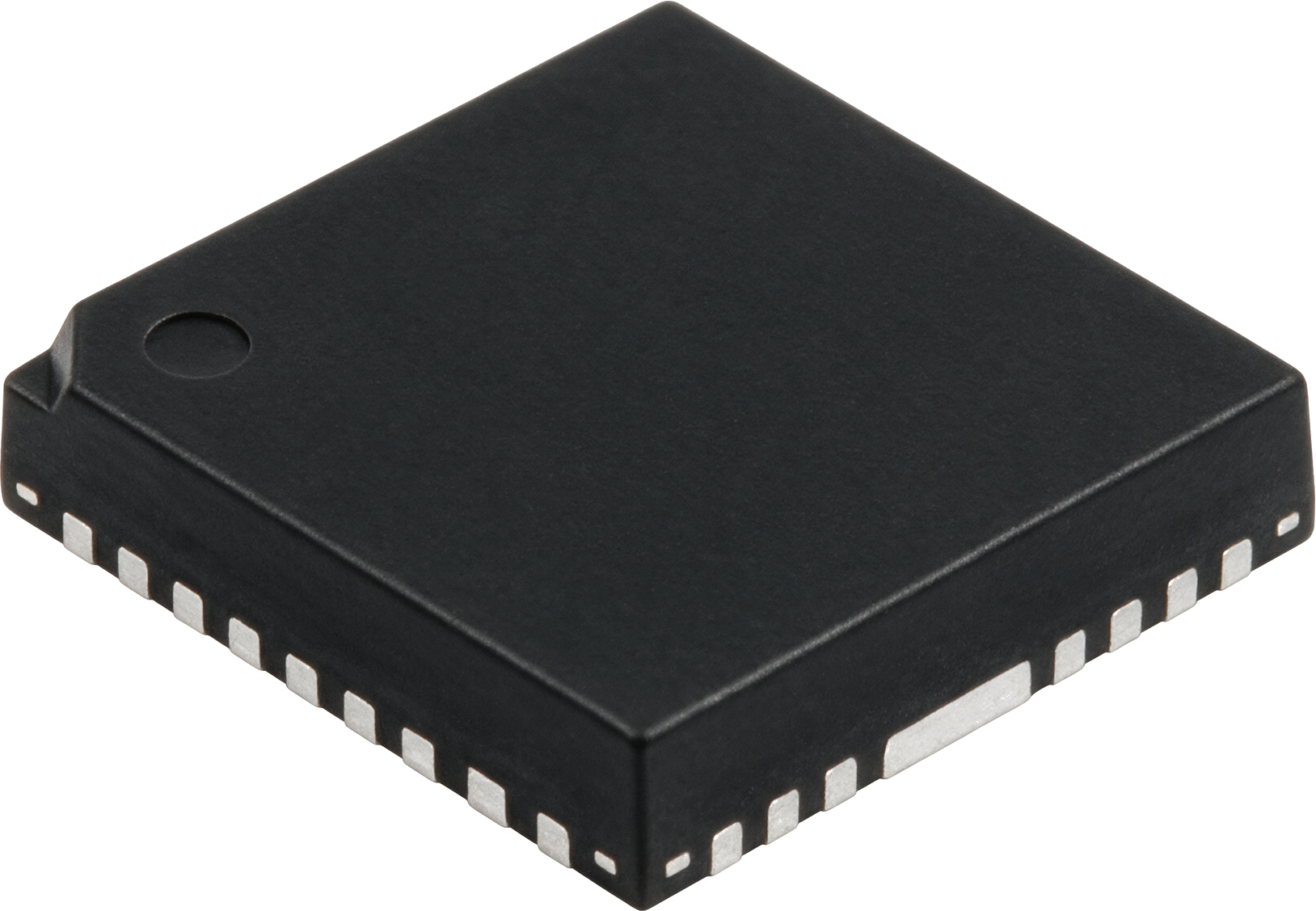

LM76002RNPR

Voltage Regulators - DC DC Switching Regulators

SynchronousStep-DownDC-DC

The LM76002 is a high-efficiency, 2.5A synchronous step-down DC-DC converter designed for wide input voltage applications up to 60V.

Best for

  • Telecom infrastructure
  • Industrial control systems

Avoid if

  • Applications requiring extremely low cost or minimal external components

Check before use

  • Thermal dissipation requirements and PCB layout

Key specifications

Input Voltage
3.5V - 60V
Output Current
2.5A
Switching Freq
300kHz - 2.2MHz

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
Level-2-260C-1 YEAR
ECCN
-
HTSUS
-

Application

IndustrialPower
