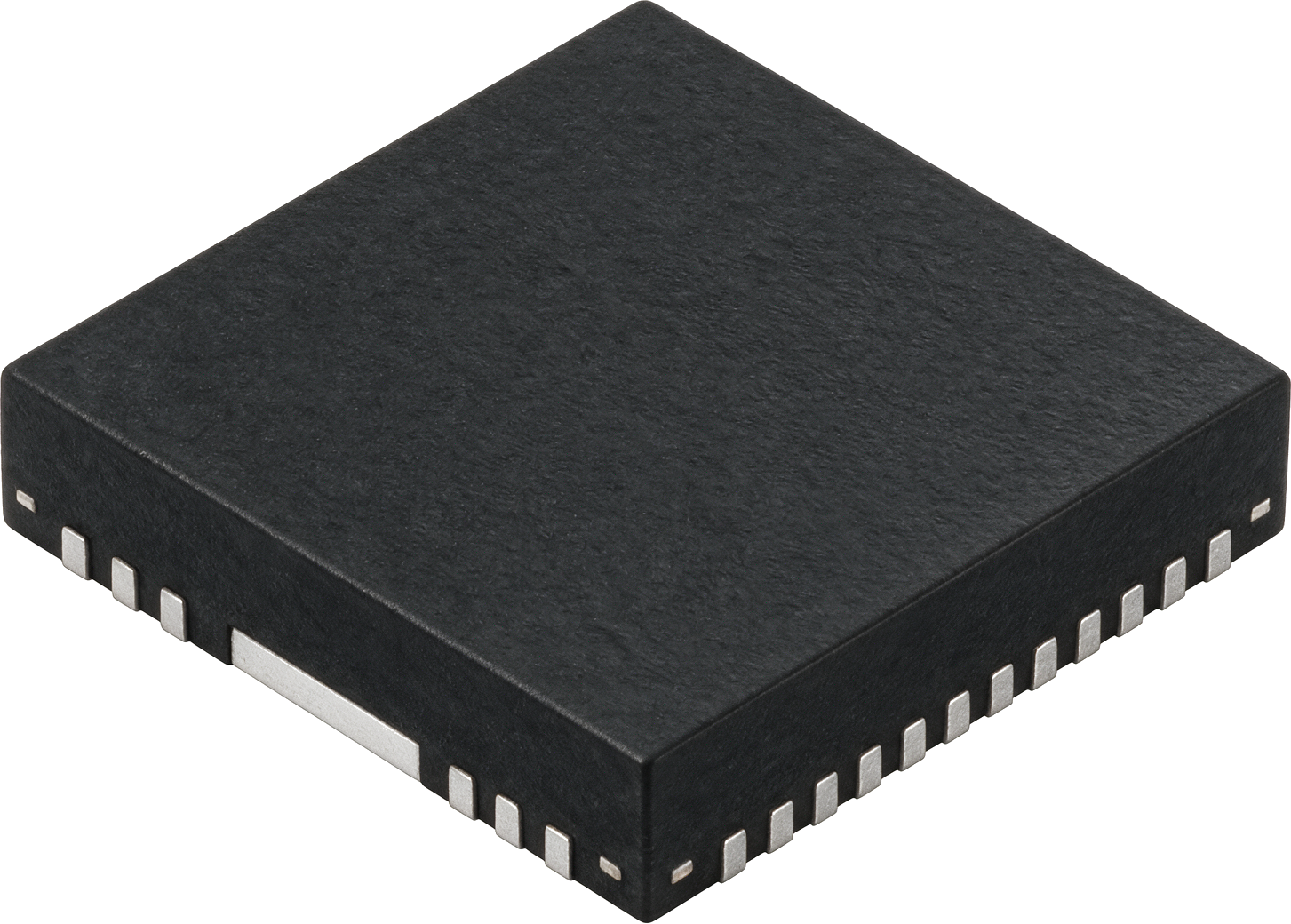

LMR36506RRPER

Voltage Regulators - DC DC Switching Regulators

Buck ConverterSynchronous65VIndustrial

The LMR36506RRPER is a high-efficiency, ultra-small 65V, 0.6A synchronous buck converter designed for industrial applications.

Best for

  • Industrial automation
  • HVAC systems
  • Compact power supplies

Avoid if

  • Applications requiring >0.6A output current

Check before use

  • RT resistor value for desired frequency
  • PCB layout for thermal management

Key specifications

Input Voltage
3.0V - 65V
Output Current
0.6A
Quiescent Current
4µA
Package
2mm x 2mm VQFN-HR

Compliance & Environment

RoHS
Not applicable
REACH
-
MSL
Level-2-260C-1 YEAR
ECCN
-
HTSUS
-

Application

IndustrialPower

Datasheet

sszt346

800 KB

Datasheet AI

CAD Models

Download ECAD models for LMR36506RRPER: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a 65V, 0.6A synchronous step-down DC/DC converter with a very low 4µA quiescent current, optimized for space-constrained industrial designs.
