LRC8804DT1G AI Analysis:
Datasheet, Specs, Alternatives & ECAD

AI summary

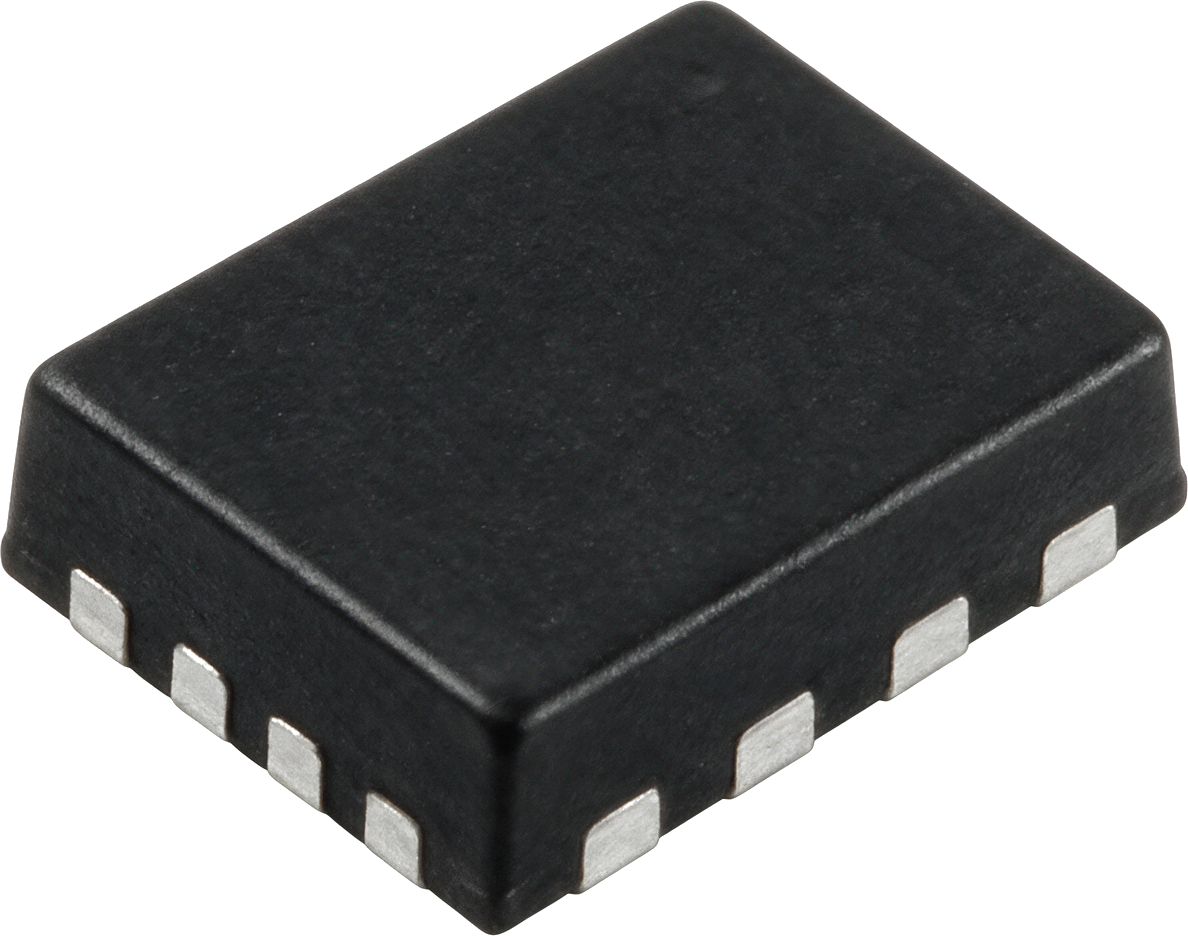

LRC8804DT1G product

LRC8804DT1G

TVS - Diodes

ESD ProtectionTVS Array

The LRC8804DT1G is a 4-channel ESD protection array designed for high-speed data lines, offering low capacitance and robust IEC 61000-4-2 protection.

Best for

  • HDMI
  • DisplayPort
  • USB 2.0
  • High-speed data interfaces

Avoid if

    Check before use

      Key specifications

      Channels
      4
      Capacitance (I/O-GND)
      0.6 pF
      ESD Rating
      ±15 kV
