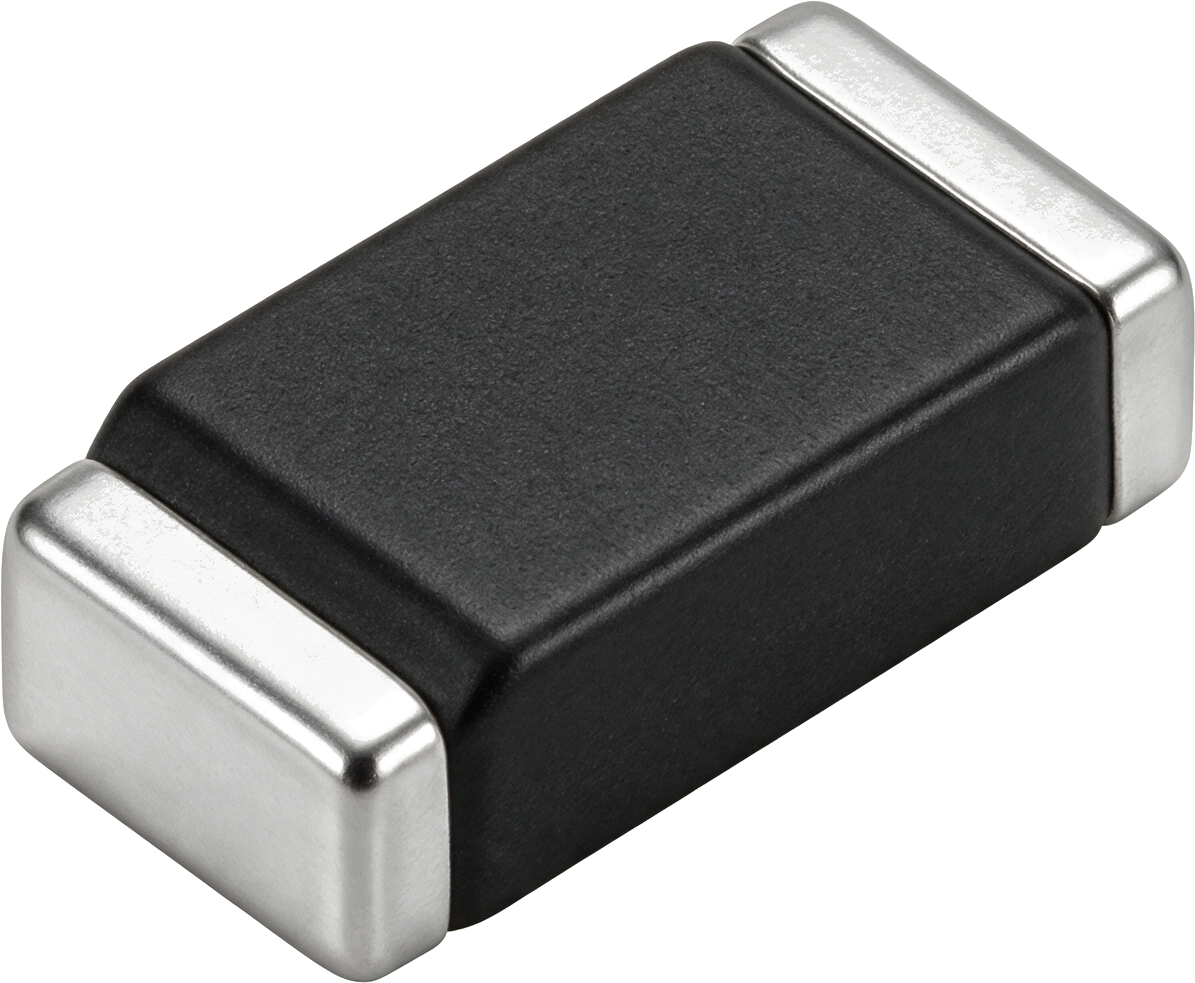

MF-SM250-2 product

MF-SM250-2

PTC Resettable Fuses

PTCResettable FuseSMD

The MF-SM250-2 is a surface-mount PTC resettable fuse from Bourns, designed for overcurrent protection in low-voltage applications.

Best for

  • Automotive electronics
  • Computers
  • General low-voltage power supplies

Avoid if

  • Applications exceeding 15 V or 100 A fault current

Check before use

  • Thermal derating based on ambient temperature

Key specifications

Hold Current
2.5 A
Max Voltage
15 V
Resistance Range
0.024 - 0.085 Ohms

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
Level 1
ECCN
EAR99
HTSUS
8533290000.0

Application

AutomotiveComputers

Datasheet

Bourns-company-36.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for MF-SM250-2: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a polymer PTC (Positive Temperature Coefficient) resettable fuse used to protect circuits from overcurrent conditions.
