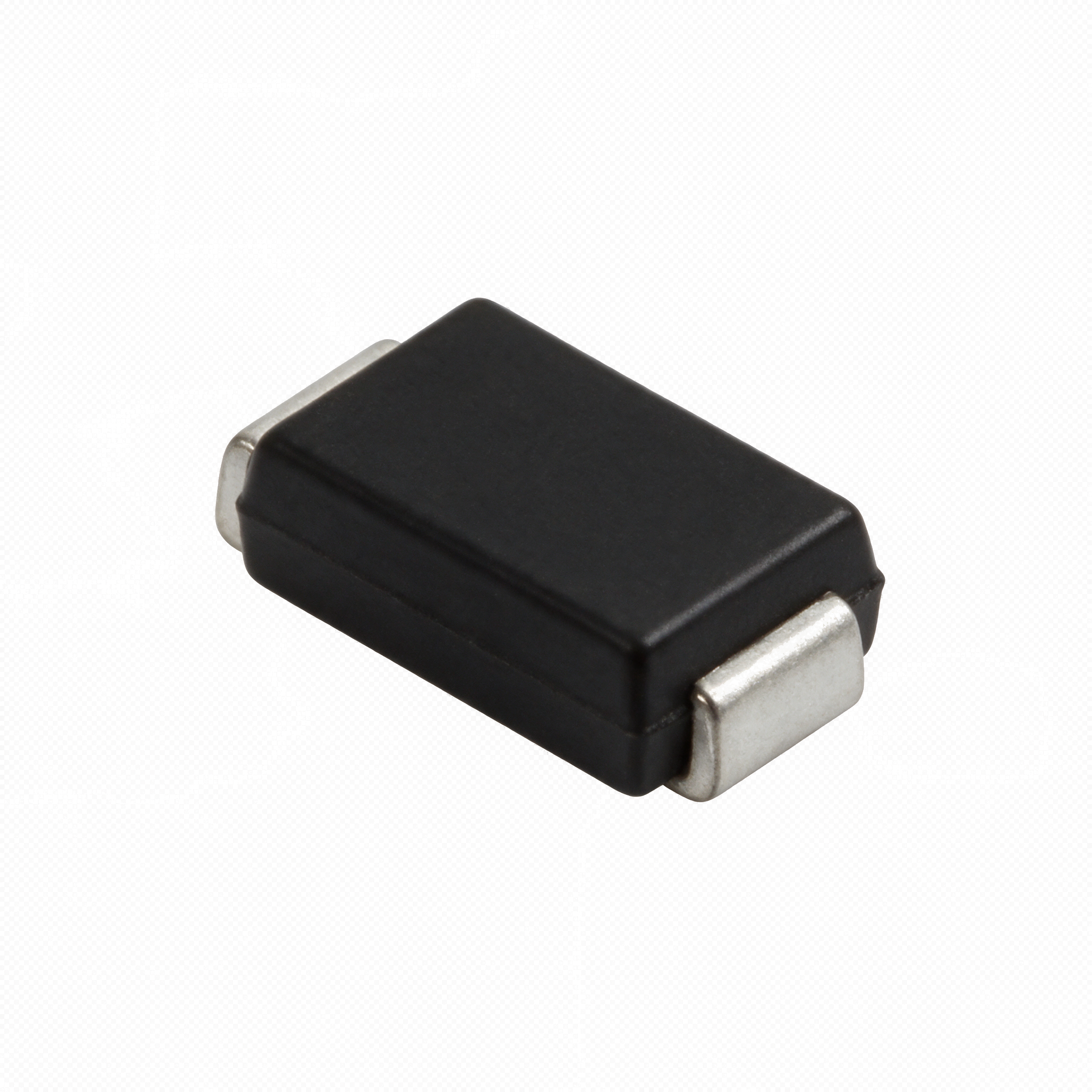

MHCI06030-R20M-R8

Chokes

Power InductorMoldedShieldedHigh Current

The MHCI06030-R20M-R8 is a high-performance 200nH molded power choke from Chilisin, optimized for high-current DC/DC power conversion.

Best for

  • DC/DC converters
  • High-current power supplies
  • Server and switch power rails

Avoid if

  • Space-constrained designs requiring smaller footprints
  • Applications exceeding 125°C operating temperature

Check before use

  • Thermal dissipation on the PCB
  • Saturation current margin at maximum load

Key specifications

Inductance
200 nH
Isat
45 A
Irms
37 A
RDC
1.5 mΩ

Compliance & Environment

RoHS
Compliant
REACH
Compliant
MSL
-
ECCN
-
HTSUS
-

Application

PowerIndustrial

Datasheet

30a05089e43a3a0d63f48e1c0afd24ae_2205261600_Chilisin-Elec-MHCI06030-R20M-R8_C3018872.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for MHCI06030-R20M-R8: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a molded, magnetically shielded power choke inductor with an inductance of 200nH and a 20% tolerance, designed for high-density power management circuits.
