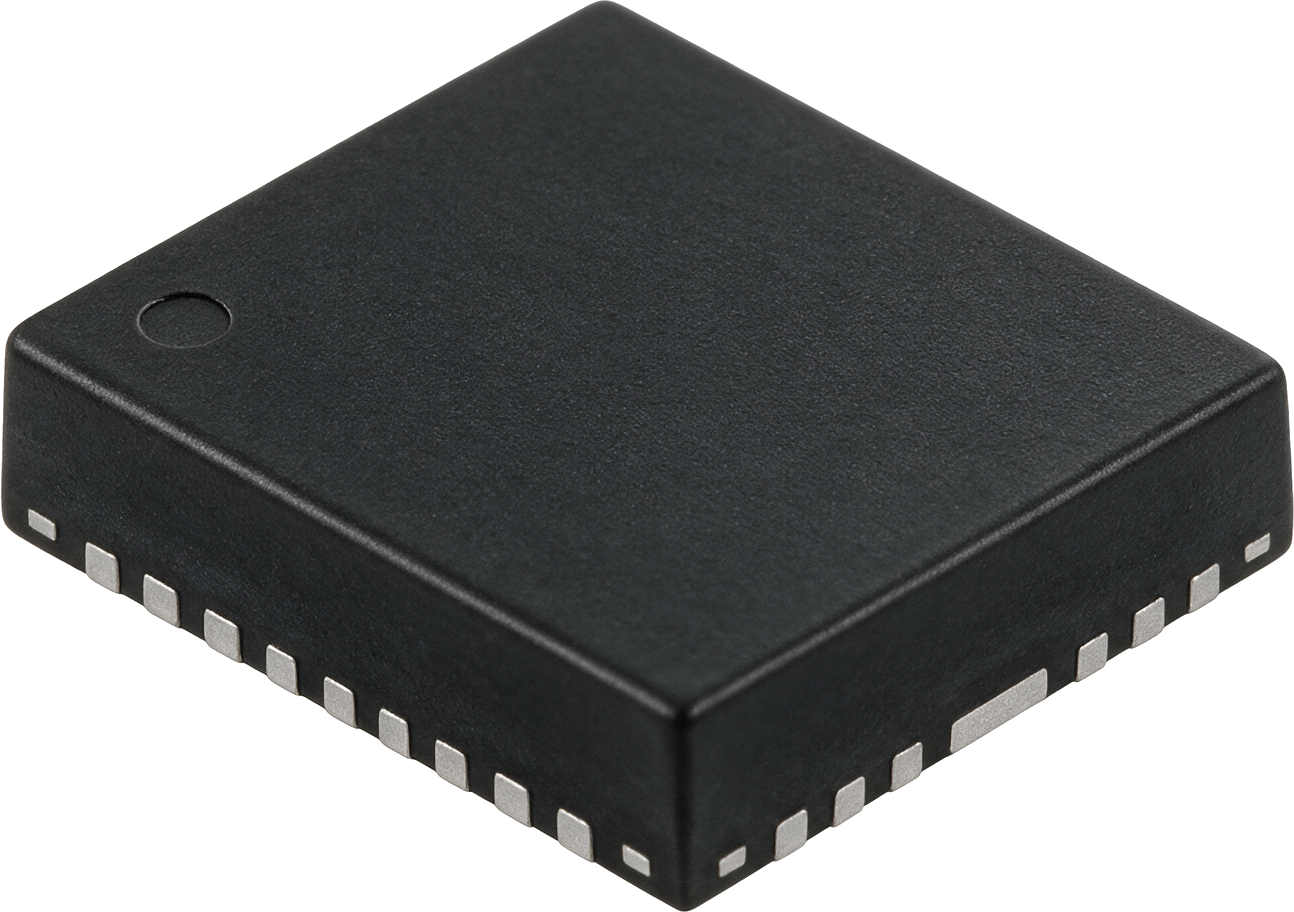

MP8758HGL-Z

Voltage Regulators - DC DC Switching Regulators

Buck Converter10ASynchronous

The MP8758H is a high-current, synchronous step-down buck converter capable of 10A output, designed for 4.5V-22V input applications.

Best for

  • Distributed power systems
  • Set-top boxes
  • Flat-panel displays

Avoid if

  • Applications requiring extremely low quiescent current at all times

Check before use

  • Thermal dissipation requirements for 10A operation

Key specifications

Input Voltage
4.5V - 22V
Output Current
10A
Switching Frequency
500kHz

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
-
ECCN
-
HTSUS
8542390001.0

Application

Power Management
