P24C64C-UNH-MIR AI Analysis:
Datasheet, Specs, Alternatives & ECAD

AI summary

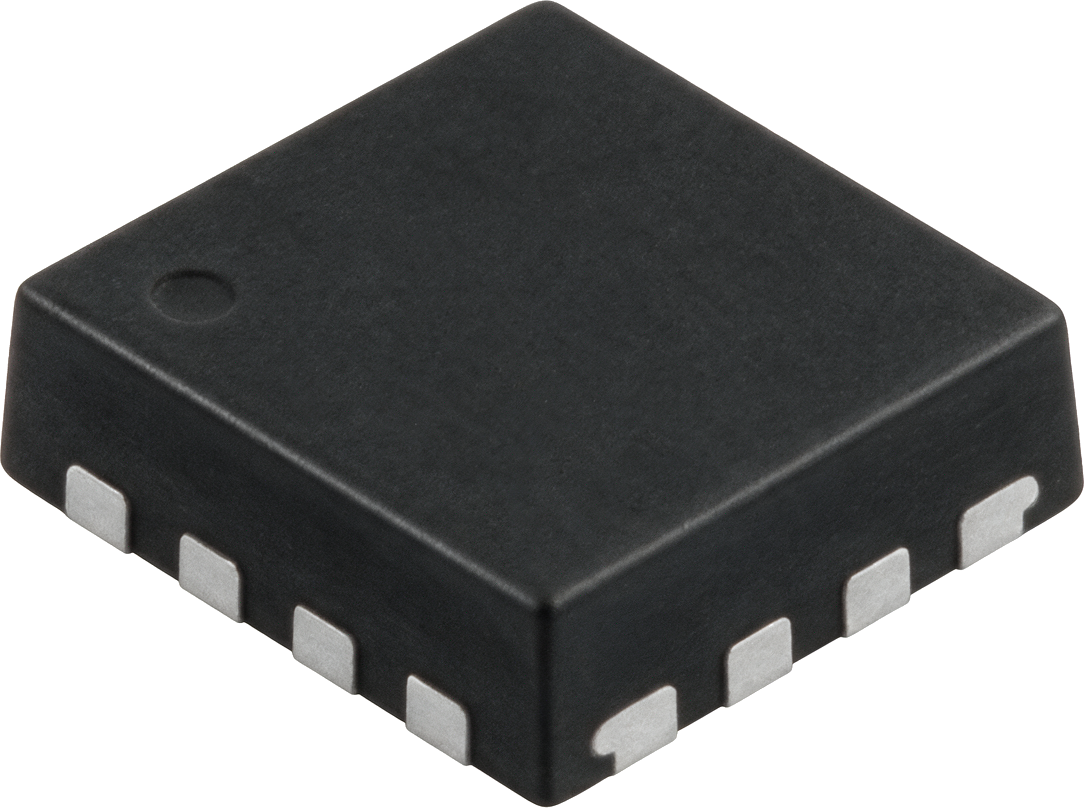

P24C64C-UNH-MIR product

P24C64C-UNH-MIR

Memory - EEPROMs

EEPROMI2CMemory

The P24C64C is a 64Kbit I2C-compatible serial EEPROM designed for reliable data storage with a 1MHz clock speed and 1 million write cycle endurance.

Best for

  • General purpose non-volatile data storage
  • Configuration parameter storage

Avoid if

  • Applications requiring extremely high-speed random access memory

Check before use

  • I2C bus pull-up resistor values
  • Pin configuration for hardware addressing

Key specifications

Memory Density
64 Kbit
Interface
I2C
Voltage Range
1.7V - 5.5V
Max Frequency
1 MHz

Compliance & Environment

RoHS
-
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

General

Datasheet

6c8df4b521d8e5a8372bdf3e774c8edb_2203231830_PUYA--P24C64C-UNH-MIR_C2977256.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for P24C64C-UNH-MIR: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a 64-Kbit serial EEPROM that uses the I2C interface, organized as 8K x 8 bits, and features a 32-byte page write mode.
