SAWF14111G58AT AI Analysis:
Datasheet, Specs, Alternatives & ECAD

AI summary

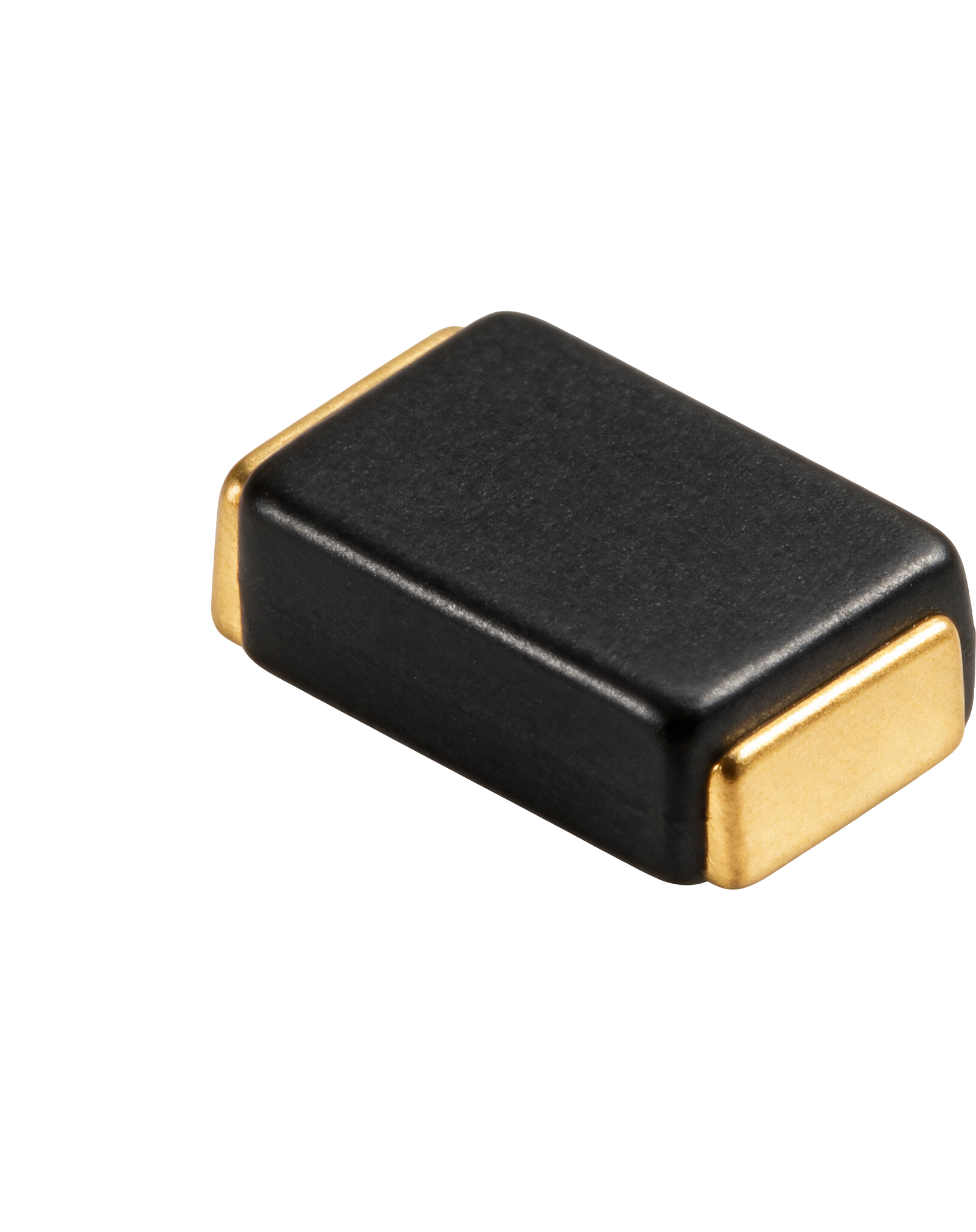

SAWF14111G58AT product

SAWF14111G58AT

SAW Filters

SAW FilterGNSSRF

The SAWF14111G58AT is a compact SAW bandpass filter designed for GNSS applications (GPS, GLONASS, BEIDOU, GALILEO) in the 1.559-1.606 GHz range.

Best for

  • GPS/GNSS receivers
  • Mobile communication devices

Avoid if

  • Applications outside the 1.559-1.606 GHz range

Check before use

  • ESD protection measures
  • Matching circuit components

Key specifications

Frequency
1.559-1.606 GHz
Insertion Loss
1.1-1.4 dB
Package
1.4 x 1.1 mm

Compliance & Environment

RoHS
Compliant
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

Connectivity

Datasheet

4b5a4a5fc0cf6448107ef9253c1ec993_2211091800_Sunltech-Tech-SAWF14111G58AT_C5244144.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for SAWF14111G58AT: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a high-performance Surface Acoustic Wave (SAW) bandpass filter optimized for GNSS frequency bands.
