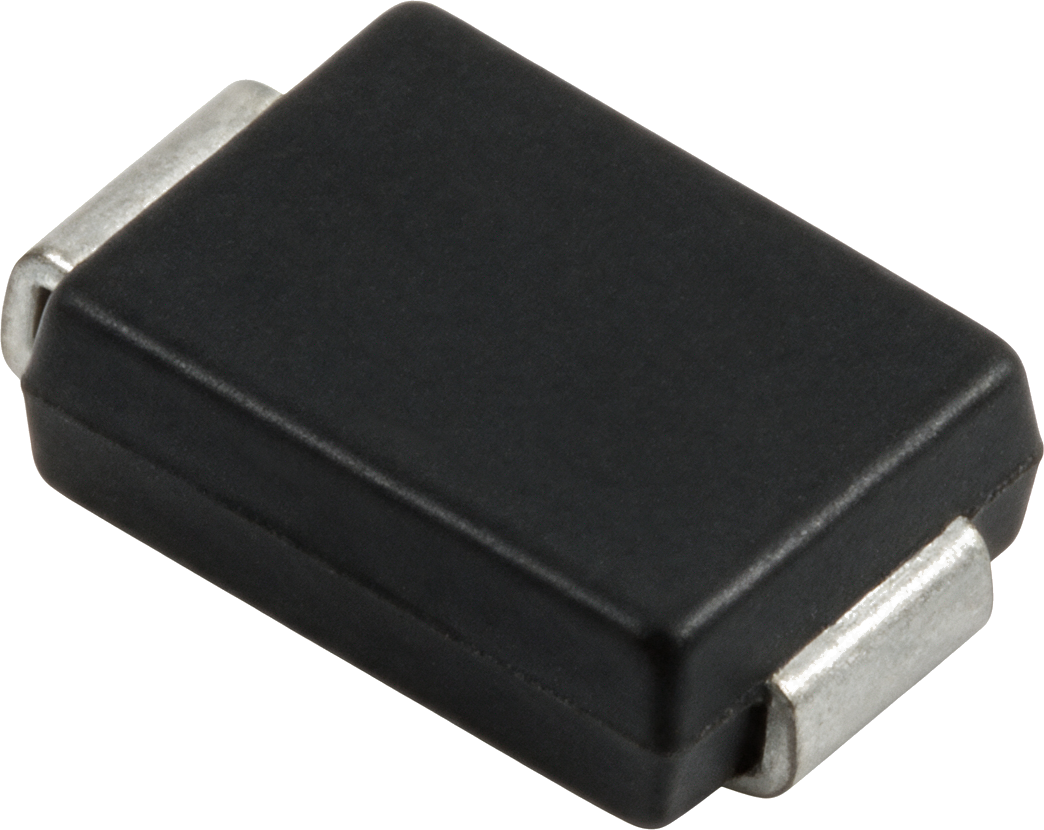

SMMS1770-470M

Chokes

Power InductorSMTHigh Current

The SMMS1770-470M is a high-performance 47µH molding SMT power inductor designed for high-current, high-density power management applications.

Best for

  • DC/DC converters
  • High-current POL converters
  • Server power supplies

Avoid if

  • Space-constrained designs requiring smaller footprints
  • Applications exceeding 16A saturation current

Check before use

  • Thermal dissipation in the end application
  • PCB trace thickness for high current

Key specifications

Inductance
47 µH
Saturation Current
16 A
Max DCR
55 mΩ

Compliance & Environment

RoHS
Compliant
REACH
Compliant
MSL
-
ECCN
-
HTSUS
-

Application

Power ManagementIndustrial
