SN74ALVCH16841DLR AI Analysis:
Datasheet, Specs, Alternatives & ECAD

AI summary

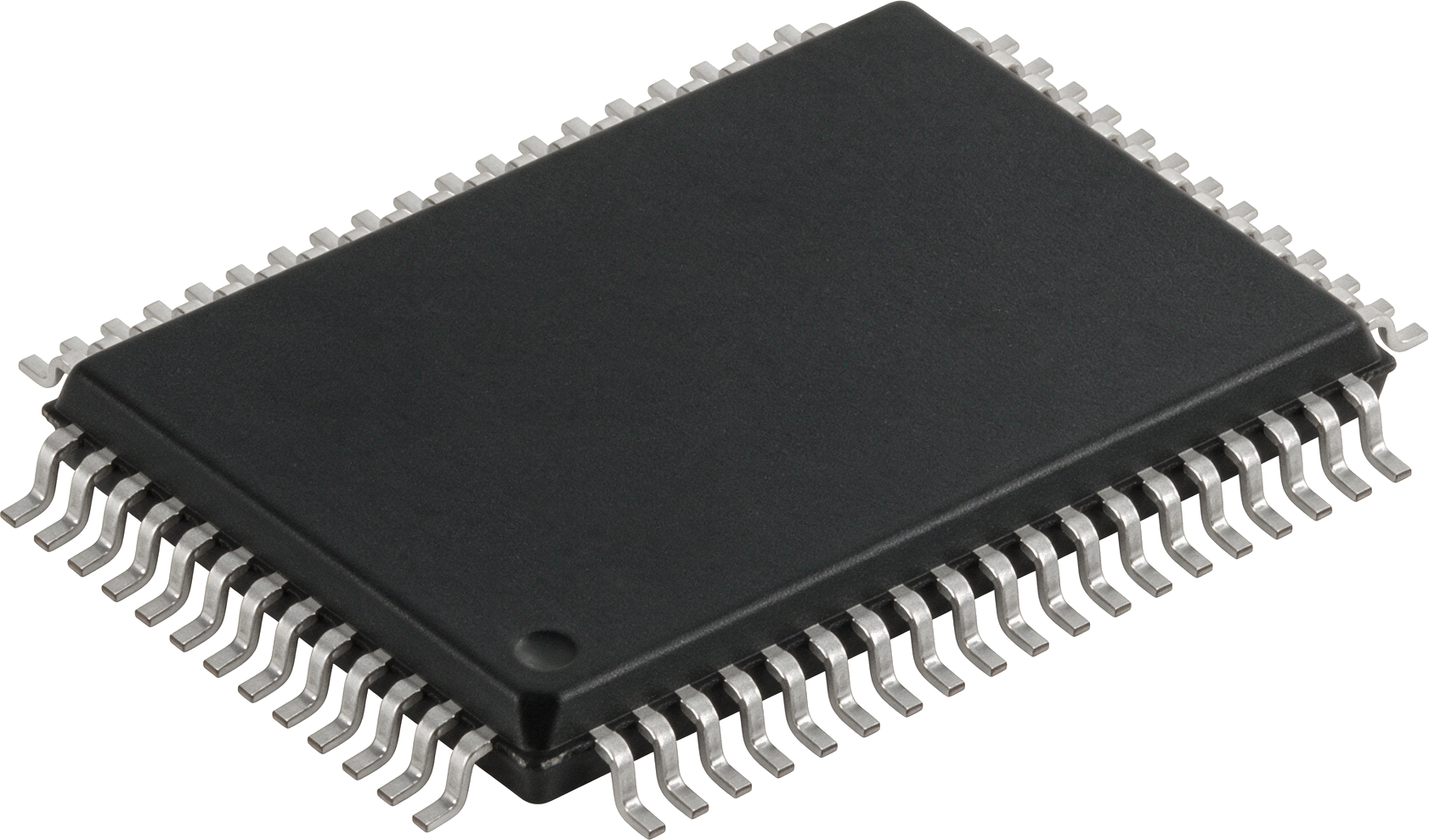

SN74ALVCH16841DLR product

SN74ALVCH16841DLR

Latches

LatchBus Interface3-State

The SN74ALVCH16841DLR is a 20-bit D-type latch with 3-state outputs, optimized for 1.65V to 3.6V bus-interface applications.

Best for

  • Bus interfacing
  • Buffer registers
  • Working registers

Avoid if

  • Applications requiring voltages outside 1.65V-3.6V range

Check before use

  • Input logic levels
  • Bus-hold requirements

Key specifications

Bits
20
Voltage Range
1.65V - 3.6V
Package
SSOP-56

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
Level-1-260C-UNLIM
ECCN
-
HTSUS
-

Application

Bus InterfaceBuffer Registers

Datasheet

Texas-Instruments-company-64.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for SN74ALVCH16841DLR: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a 20-bit bus-interface D-type latch with 3-state outputs, designed for high-performance CMOS submicron processes.
