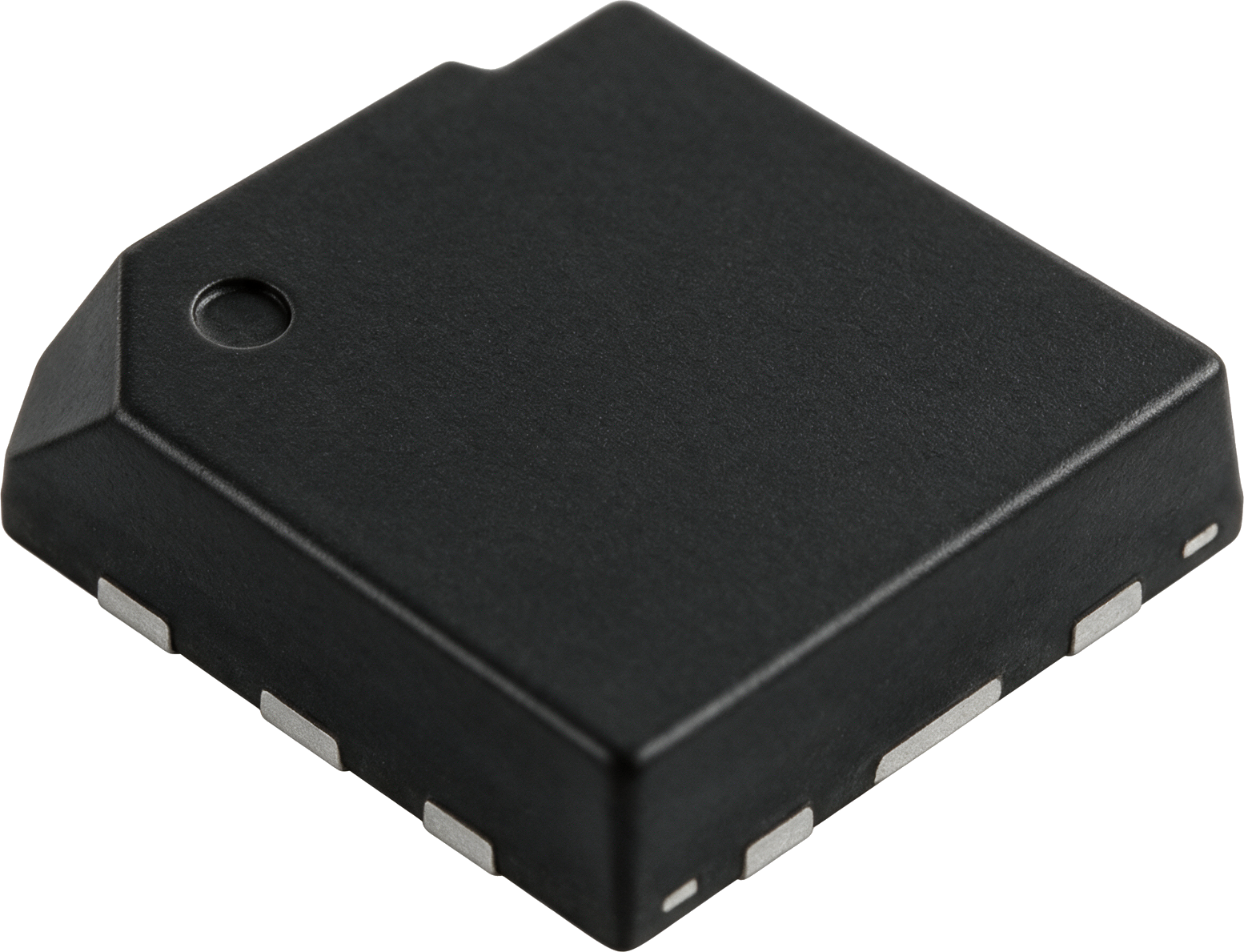

SN74AUP2G14DRYR

Gates and Inverters

InverterSchmitt TriggerLow Power

The SN74AUP2G14DRYR is a dual Schmitt-trigger inverter optimized for low-power, battery-operated portable devices.

Best for

  • Battery-powered portable electronics
  • Low-voltage logic applications

Avoid if

  • High-speed applications requiring sub-nanosecond delays

Check before use

  • Ensure unused inputs are tied to VCC or GND

Key specifications

Supply Voltage
0.8V - 3.6V
Propagation Delay
4.3ns
Static Current
0.9µA

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
Level-1-260C-UNLIM
ECCN
EAR99
HTSUS
8542.39.0001

Application

Portable Electronics

Datasheet

Texas-Instruments-company-64.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for SN74AUP2G14DRYR: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a dual Schmitt-trigger inverter from Texas Instruments, part of the AUP (Advanced Ultra-Low-Power) family, designed for high-efficiency, low-voltage operation.
