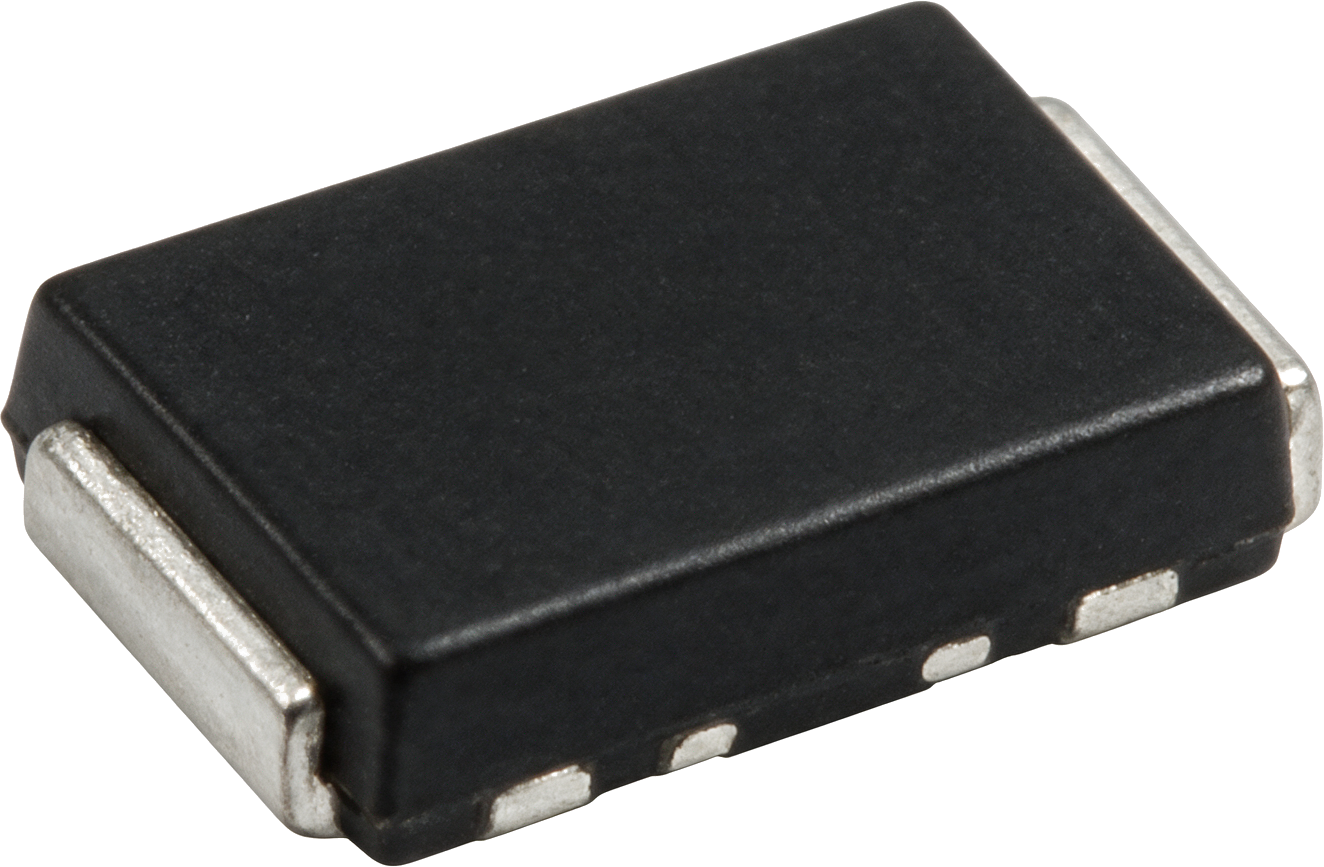

SPM6545VT-100M-D

Chokes

AutomotivePower InductorShieldedAEC-Q200

The TDK SPM6545VT-100M-D is a robust 10µH shielded power inductor designed for automotive environments, offering high thermal stability and vibration resistance.

Best for

  • Automotive power circuits
  • ADAS systems
  • LED drivers

Avoid if

  • Applications requiring non-shielded inductors or extremely low-profile components below 4.5mm height.

Check before use

  • Thermal design for self-heating at rated current.

Key specifications

Inductance
10 µH
Saturation Current
7.1 A
DC Resistance
52.3 mΩ
Operating Temp
-55°C to +155°C

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
Compliant
MSL
-
ECCN
-
HTSUS
-

Application

AutomotivePower Management

Datasheet

efa1278d08597427547b4597e6493053.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for SPM6545VT-100M-D: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a wound metal composite power inductor from TDK, specifically engineered for automotive applications with AEC-Q200 certification.
