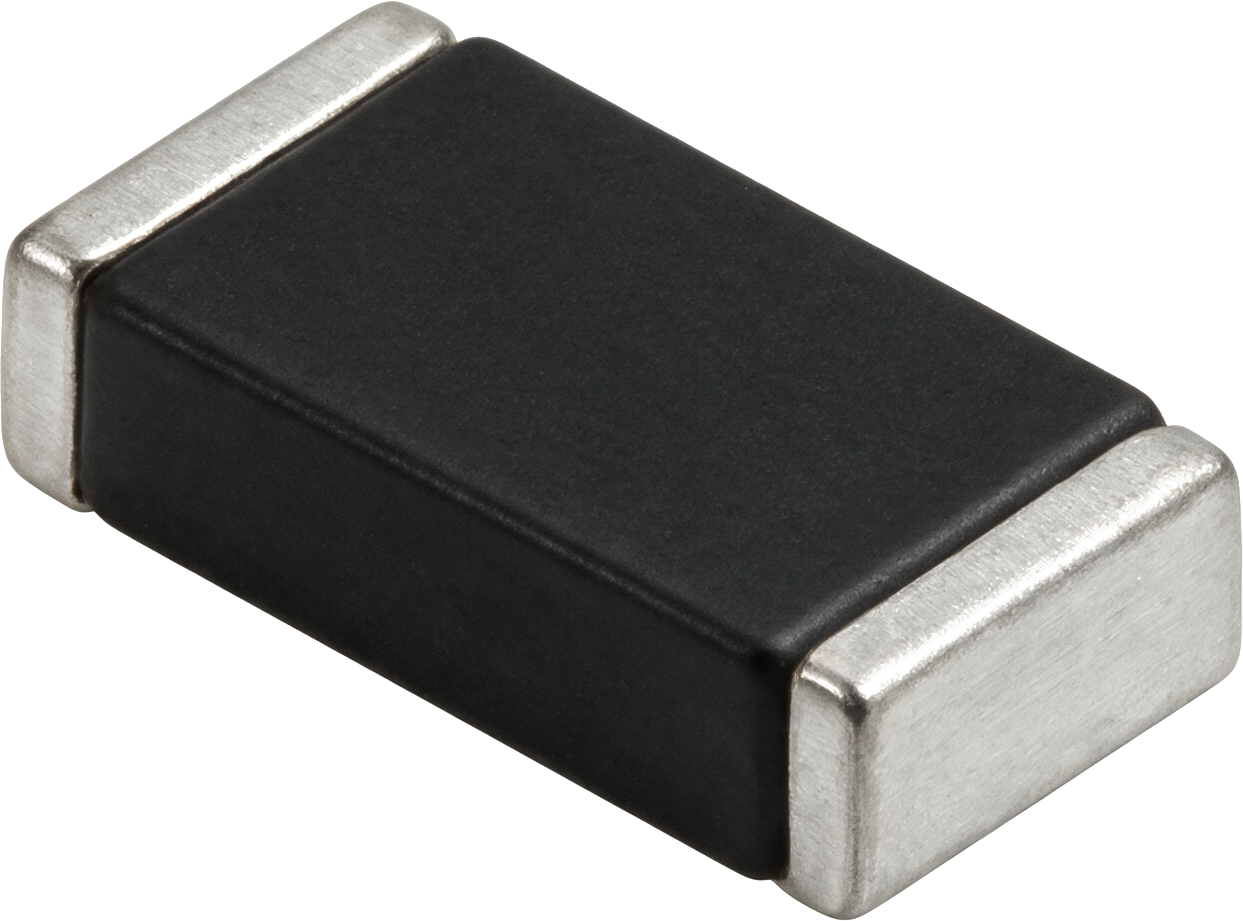

SRR1260-2R2Y

Chokes

ShieldedSMDPower Inductor

The Bourns SRR1260-2R2Y is a shielded SMD power inductor providing 2.2 µH inductance and 8.2 A current handling, suitable for DC/DC converter and power supply applications.

Best for

  • DC/DC converters
  • Power supplies

Avoid if

  • Applications requiring high inductance precision

Check before use

  • Thermal dissipation in high-current environments

Key specifications

Inductance
2.2 µH
Rated Current
8.2 A
DC Resistance
10.5 mΩ

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
-
MSL
1
ECCN
EAR99
HTSUS
8504508000.0
