SWRH1004C-470MT AI Analysis:
Datasheet, Specs, Alternatives & ECAD

AI summary

SWRH1004C-470MT product

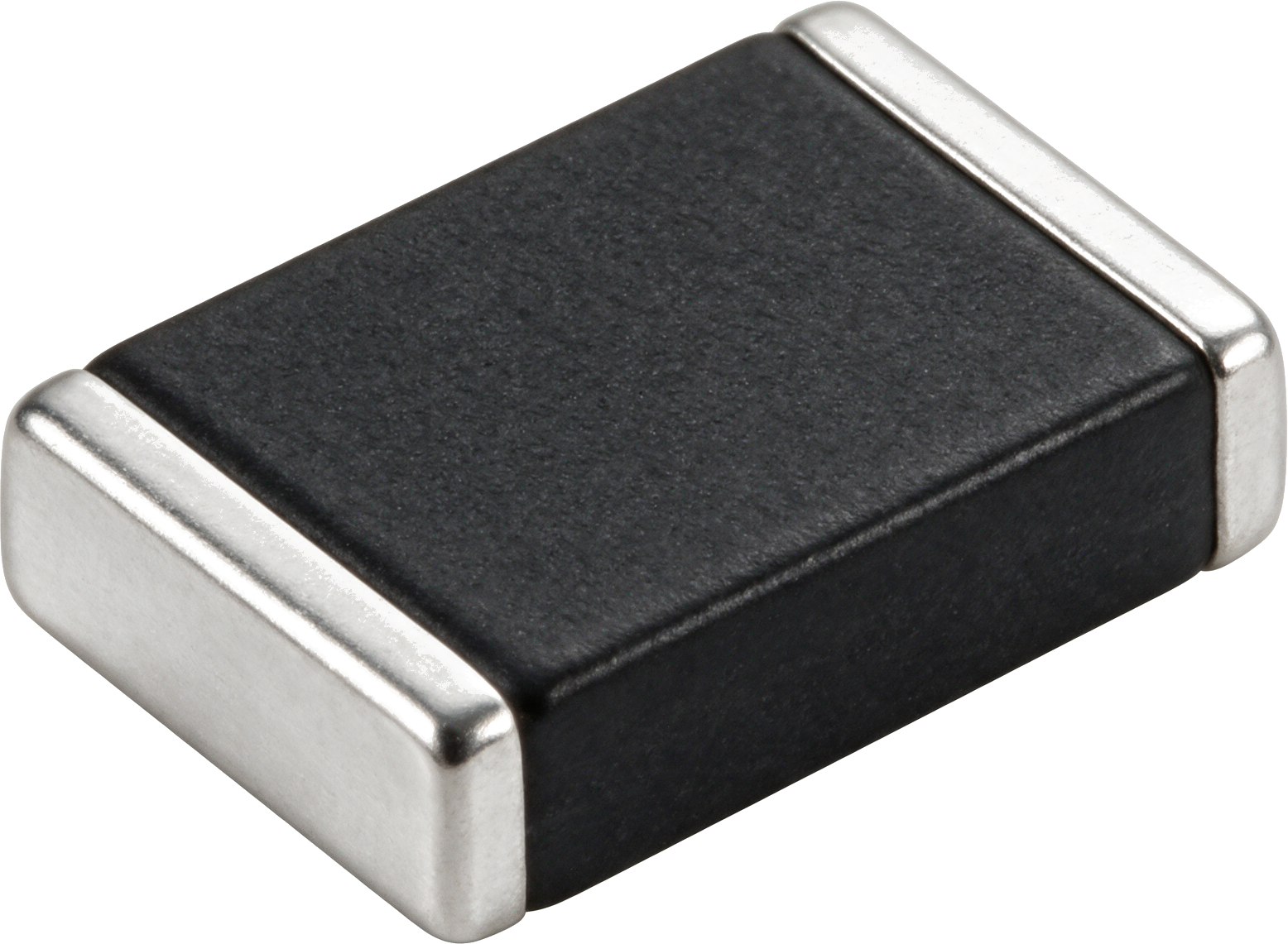

SWRH1004C-470MT

Chokes

SMDPower InductorWire Wound

The SWRH1004C-470MT is a 47µH wire-wound SMD power inductor from Sunlord, featuring a metallic base and closed magnetic circuit for efficient power management.

Best for

  • Power supply chokes
  • Consumer electronics
  • Communication equipment

Avoid if

  • Applications requiring currents above 1.9A
  • Space-constrained designs smaller than 10mm footprint

Check before use

  • PCB land pattern
  • Thermal management in high-density designs

Key specifications

Inductance
47 µH
Rated Current
1.9 A
DC Resistance
0.128 Ω

Compliance & Environment

RoHS
-
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

Power SupplyConsumer Electronics
