TFSZ06051987-3315A4 product

TFSZ06051987-3315A4

RF/IF and RFID

BalunRFTDKThin-Film

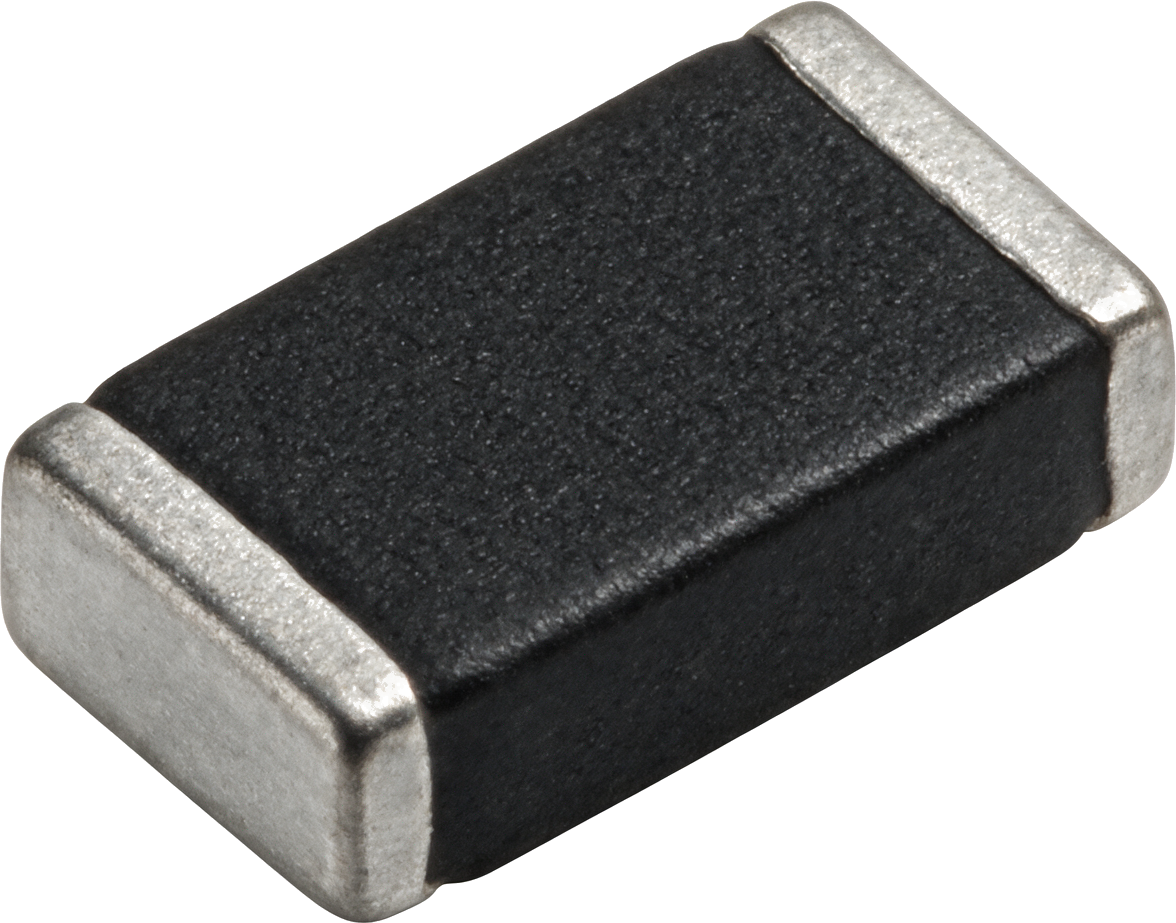

The TFSZ06051987-3315A4 is a thin-film balun from TDK, optimized for Band1-Band3 Rx applications (1805-2170MHz) in a compact 0202 package.

Best for

  • RF signal balancing
  • Band1-Band3 Rx applications

Avoid if

  • Applications outside the 1805-2170MHz range

Check before use

  • Reflow soldering profile compatibility

Key specifications

Frequency
1805-2170 MHz
Insertion Loss
0.42 dB
Package
0202 (0.65x0.5mm)

Compliance & Environment

RoHS
RoHS Compliance
REACH
-
MSL
1
ECCN
-
HTSUS
-

Application

RF Communications

Datasheet

b90aa8e552a8ed5c083b6d4730fdd5a1_2005181102_TDK-TFSZ06051987-3315A4_C340677.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for TFSZ06051987-3315A4: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a thin-film balun component manufactured by TDK, specifically designed for RF signal conversion in the 1805-2170MHz frequency band.
