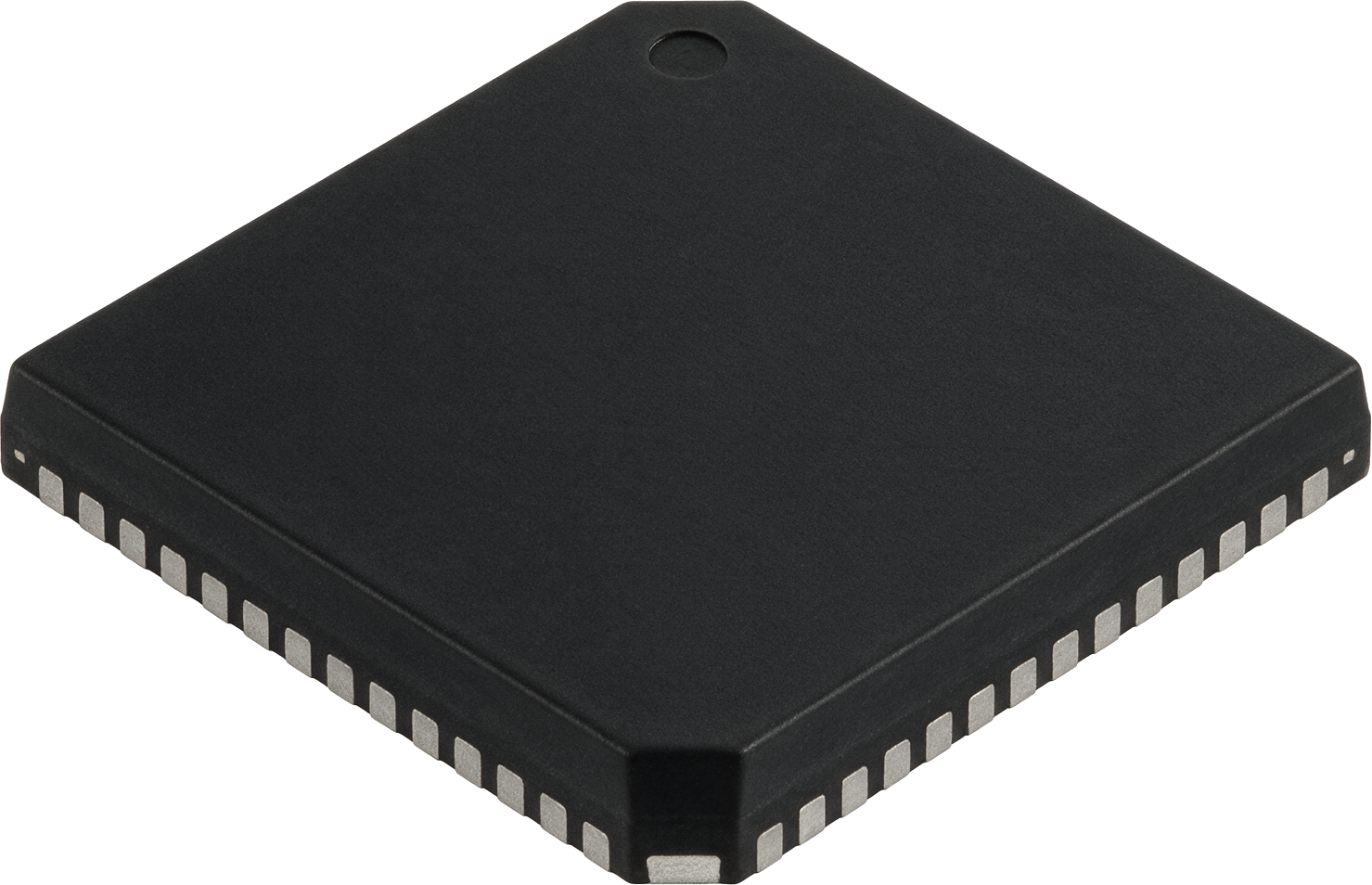

TLC6983RRFR

Display Drivers

LED DriverMatrixCommon Cathode

The TLC6983 is a high-performance, low-power common cathode LED driver optimized for high-density Mini/Micro-LED and NPP display applications.

Best for

  • Mini-LED displays
  • Micro-LED displays
  • Narrow Pixel Pitch (NPP) LED screens

Avoid if

  • Applications requiring simple, low-cost LED driving without matrix multiplexing

Check before use

  • Thermal dissipation requirements
  • CCSI interface compatibility

Key specifications

Supply Voltage
2.5V - 5.5V
PWM Resolution
16-bit
Package
VQFN-76

Compliance & Environment

RoHS
Not applicable
REACH
-
MSL
Level-3-260C-168 HR
ECCN
-
HTSUS
-

Application

NPP LED Displays
