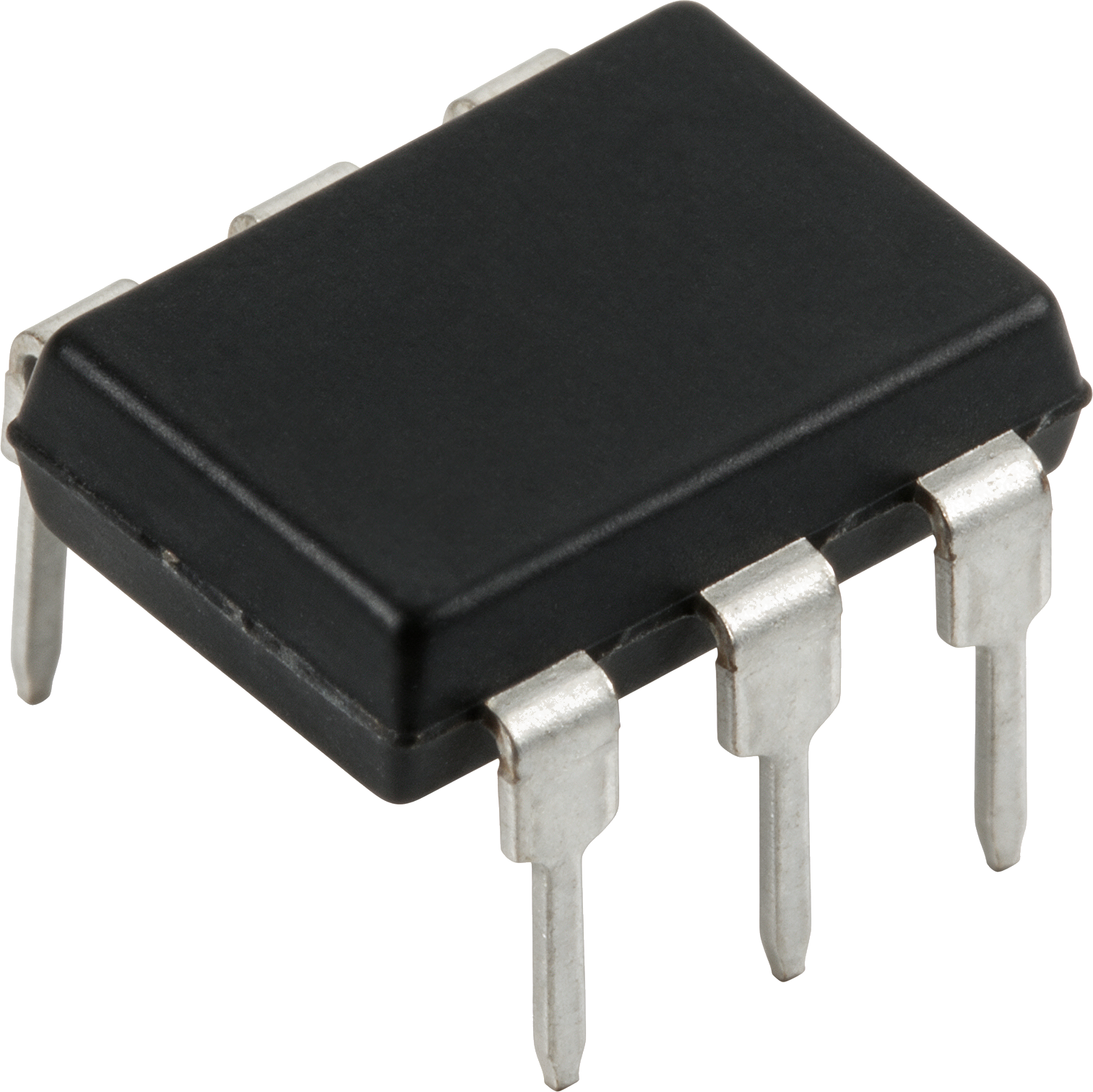

TLP560J(C,F) product

TLP560J(C,F)

SCR Output

Triac DriverPhotocoupler600V

The TLP560J is a 600V triac driver photocoupler designed for AC-output modules and solid-state relays.

Best for

  • Solid state relays
  • AC load switching

Avoid if

  • High-current applications exceeding 100mA RMS

Check before use

  • Trigger LED current (IFT) and thermal derating

Key specifications

Peak Off-State Voltage
600 V
On-State RMS Current
100 mA
Isolation Voltage
2500 Vrms

Compliance & Environment

RoHS
-
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

Industrial ControlPower Switching

Datasheet

ebda17c381a98547ad4090fcdbe2b223_2005181533_TOSHIBA-TLP560J-C-F_C516862.pdf

800 KB

Datasheet AI

CAD Models

EDA symbol, PCB footprint, and 3D model for this component. Supported tools include Altium, KiCad, Eagle, and more.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a photocoupler containing an infrared LED and a photo-triac, used to isolate low-voltage control signals from high-voltage AC loads.
