VLCF4028T-101MR33-2 AI Analysis:
Specs, Applications & Alternatives

AI summary

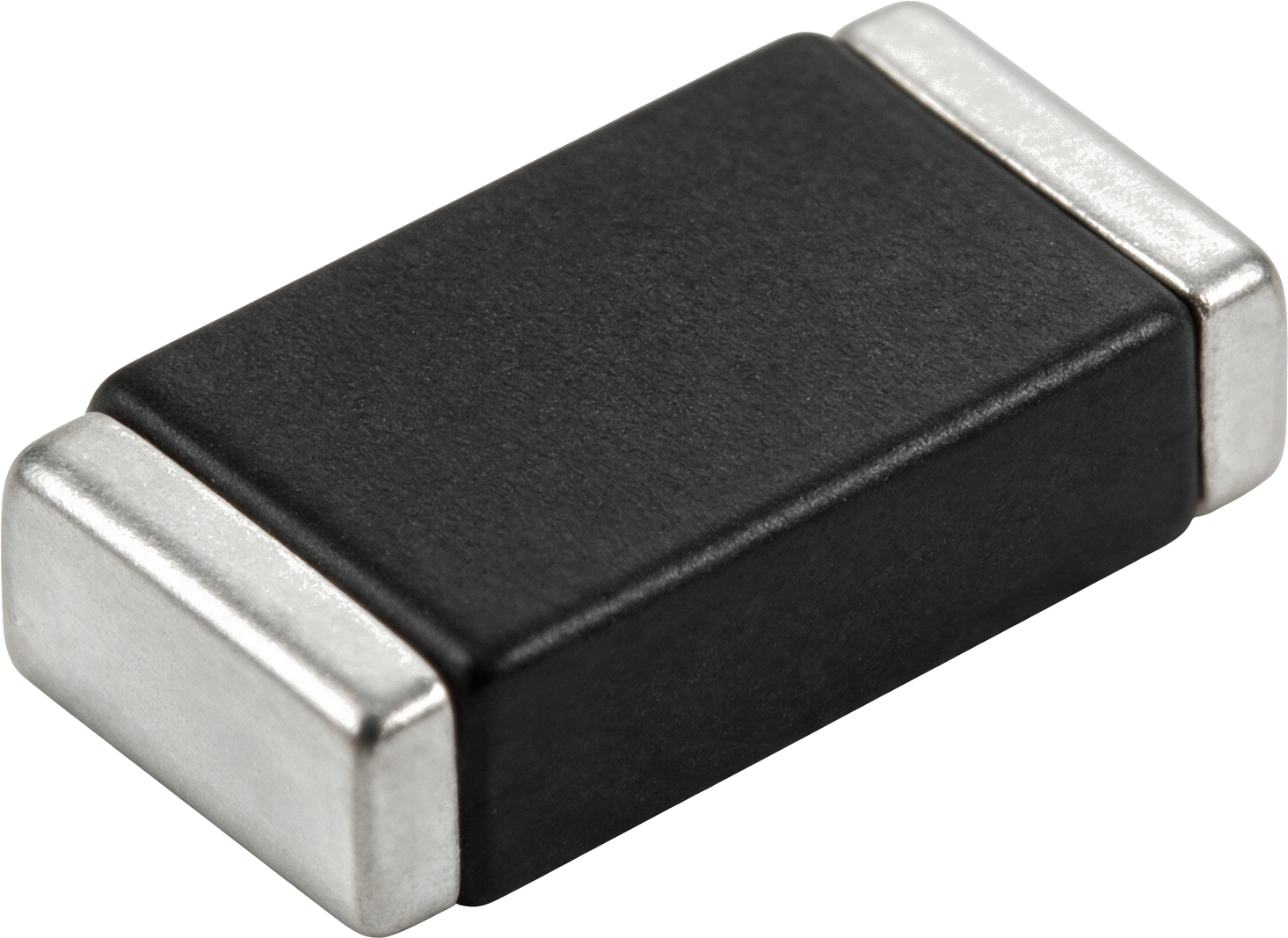

VLCF4028T-101MR33-2 product

VLCF4028T-101MR33-2

Chokes

ShieldedPower InductorFerrite

The TDK VLCF4028T-101MR33-2 is a 100µH shielded power inductor in a 4028 package, suitable for compact DC-DC power conversion.

Best for

  • DC-DC converters
  • Mobile device power supplies

Avoid if

  • Applications requiring currents significantly above 330mA

Check before use

  • Inductance drop under DC bias

Key specifications

Inductance
100 µH
Rated Current
330 mA
DCR (max)
1 Ω

Compliance & Environment

RoHS
ROHS3 Compliant
REACH
REACH SVHC-Free
MSL
-
ECCN
-
HTSUS
-

Application

PowerConsumer Electronics

Datasheet

71be830c2b9dd07c7aff28c19426cdb1.pdf

800 KB

Datasheet AI

CAD Models

EDA symbol, PCB footprint, and 3D model for this component. Supported tools include Altium, KiCad, Eagle, and more.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files

Login required · CAD models billed separately as an add-on

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a wound ferrite power inductor from TDK, featuring magnetic shielding and a low-profile 4.0x4.0x2.8mm footprint.
