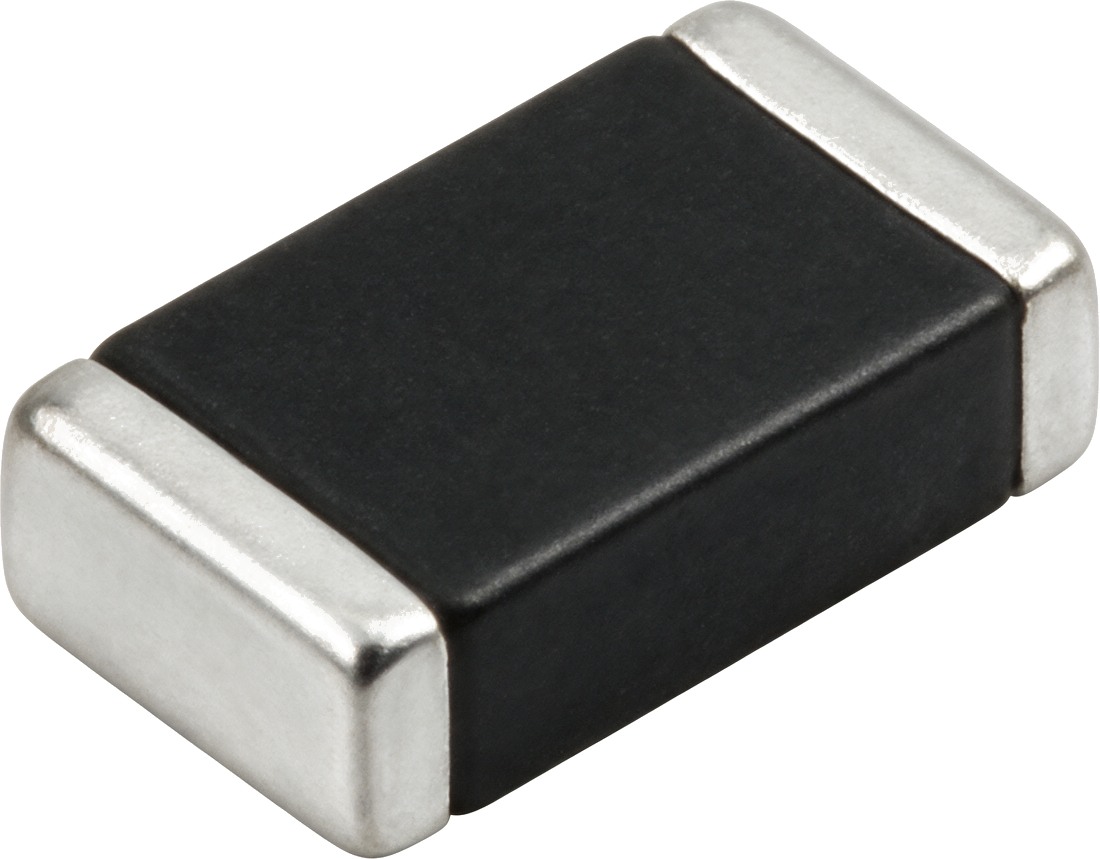

WSL10204L000FEA

Chip Resistor - Surface Mount

Current SenseAEC-Q200Power Metal Strip

The WSL10204L000FEA is a high-performance 4 mΩ, 2 W current sense resistor in a 1020 package, ideal for automotive and power applications.

Best for

  • Automotive current sensing
  • Pulse applications
  • Voltage division

Avoid if

  • Space-constrained designs requiring smaller than 1020 footprints

Check before use

  • Thermal dissipation limits at high ambient temperatures

Key specifications

Resistance
4 mΩ
Power Rating
2 W
Tolerance
±1%
Package
1020

Compliance & Environment

RoHS
Compliant
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

AutomotivePower Management

Datasheet

doc

800 KB

Datasheet AI

CAD Models

Download ECAD models for WSL10204L000FEA: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a Power Metal Strip resistor from Vishay Dale, specifically designed for current sensing with low inductance and high thermal stability.
