WSL40262L000FEB AI Analysis:
Datasheet, Specs, Alternatives & ECAD

AI summary

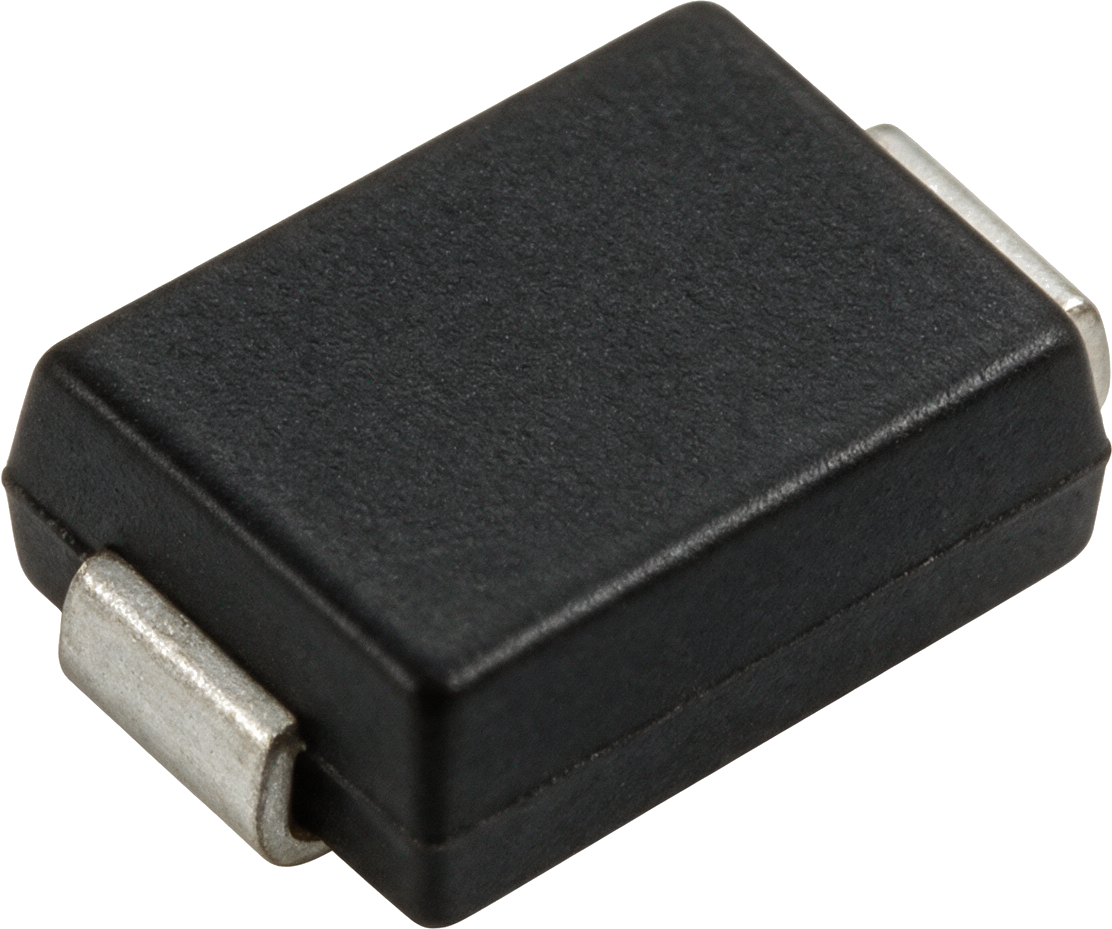

WSL40262L000FEB product

WSL40262L000FEB

Current Sense Resistors

Current SenseAEC-Q200Power Metal Strip

The WSL40262L000FEB is a high-performance 2 mΩ, 3W current sensing resistor designed for demanding automotive and industrial applications.

Best for

  • Automotive current sensing
  • Industrial power management

Avoid if

  • Space-constrained designs without adequate thermal spreading

Check before use

  • PCB thermal design and pad layout

Key specifications

Resistance
2 mΩ
Power
3 W
Tolerance
±1%
TCR
±75 ppm/°C

Compliance & Environment

RoHS
Compliant
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

AutomotivePower Management

Datasheet

Vishay-company-15.pdf

800 KB

Datasheet AI

CAD Models

Download ECAD models for WSL40262L000FEB: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol
Schematic symbol for your EDA tool
Get Files
PCB Footprint
Land pattern for PCB layout
Get Files
3D Model
STEP file for mechanical design
Get Files
KiCad Library
Verified KiCad 8 symbol, footprint, and 3D model
Generate library

Login required · CAD models billed separately as an add-on

Where to Buy

Real-time and catalog pricing from verified distributors

Live prices updated on demand · Catalog (~) prices may differ

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It is a 4-terminal Power Metal Strip® resistor from Vishay Dale, optimized for current sensing with a 2 mΩ resistance and 3W power rating.
