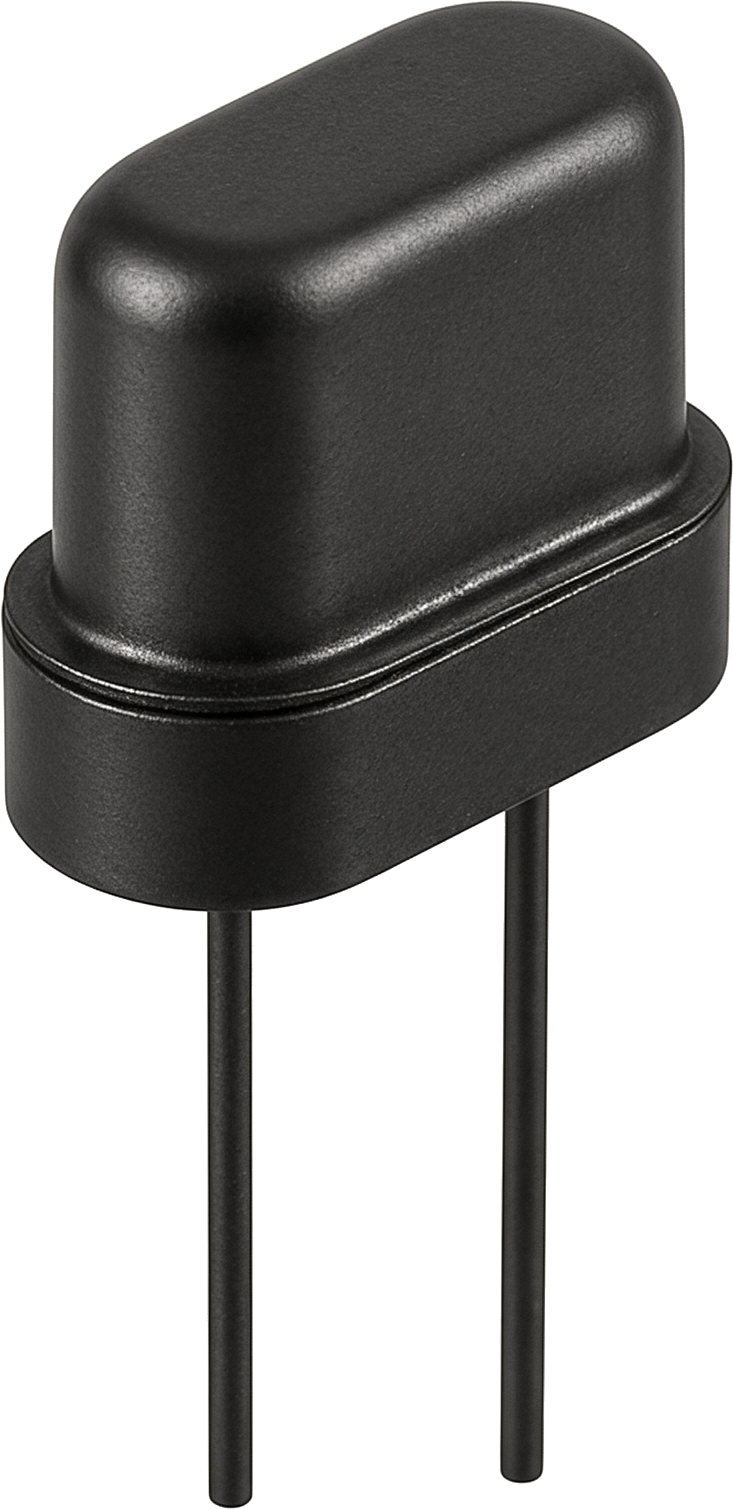

CJ02-080002020B20 product

CJ02-080002020B20

Resonators

8MHzHC-49/SQuartz Crystal

The CJ02-080002020B20 is an 8MHz HC-49/S quartz crystal designed for stable frequency generation in oscillator circuits.

Best for

  • General purpose crystal oscillator circuits

Avoid if

  • Applications requiring extremely high precision or non-standard load capacitance

Check before use

  • Oscillator circuit load capacitance matching

Key specifications

Frequency
8.000 MHz
Tolerance
±20 ppm
Load Capacitance
20 pF
Package
HC-49/S

Compliance & Environment

RoHS
Compliant
REACH
-
MSL
-
ECCN
-
HTSUS
-

Application

General Oscillator
