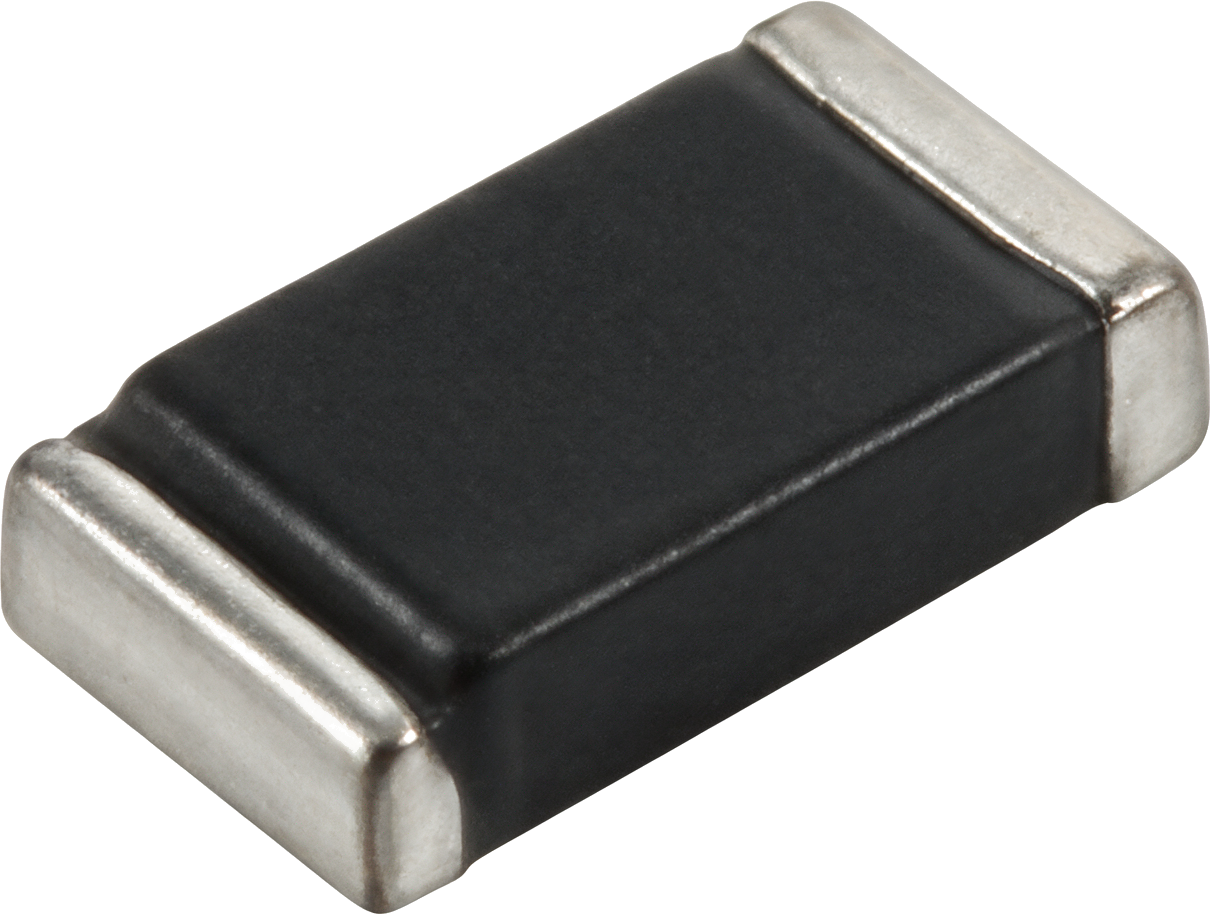

K103276812510 product

The K103276812510 is a 32.768kHz quartz crystal resonator in a compact 1610 SMD package, suitable for precision timing in space-constrained electronics.

Best for

Real-time clocks
Low-power timing circuits

Avoid if

Applications requiring high-power drive levels

Check before use

Oscillator circuit load matching

Key specifications

Frequency: 32.768 kHz
Tolerance: ±10 ppm
Load Capacitance: 12.5 pF

Compliance & Environment

RoHS: -
REACH: -
MSL: -
ECCN: -
HTSUS: -

Application

Consumer ElectronicsIndustrial

Datasheet

1cabfc37263528143b3cd4b580277ccf_2310241350_KYX-K103276812510_C19076712.pdf

800 KB

CAD Models

Download ECAD models for K103276812510: KiCad symbol & footprint, Altium footprint, PCB footprint, and 3D model.

EDA Symbol

Schematic symbol for your EDA tool

PCB Footprint

Land pattern for PCB layout

3D Model

STEP file for mechanical design

KiCad Library

Verified KiCad 8 symbol, footprint, and 3D model

Generate library

Alternative components

Alternatives are being enriched. Analyze this part in PartGenie for the latest matches.

Design and risk insights

Questions & answers

It operates at 32.768kHz with a frequency tolerance of ±10ppm, 12.5pF load capacitance, and an ESR of 90kΩ.
